4 wire “S” measuring cell CS-P1

€200.00 Tax excluded

€200.00 - €1,950.00

Condition

New

Reference

CS 25-3P1

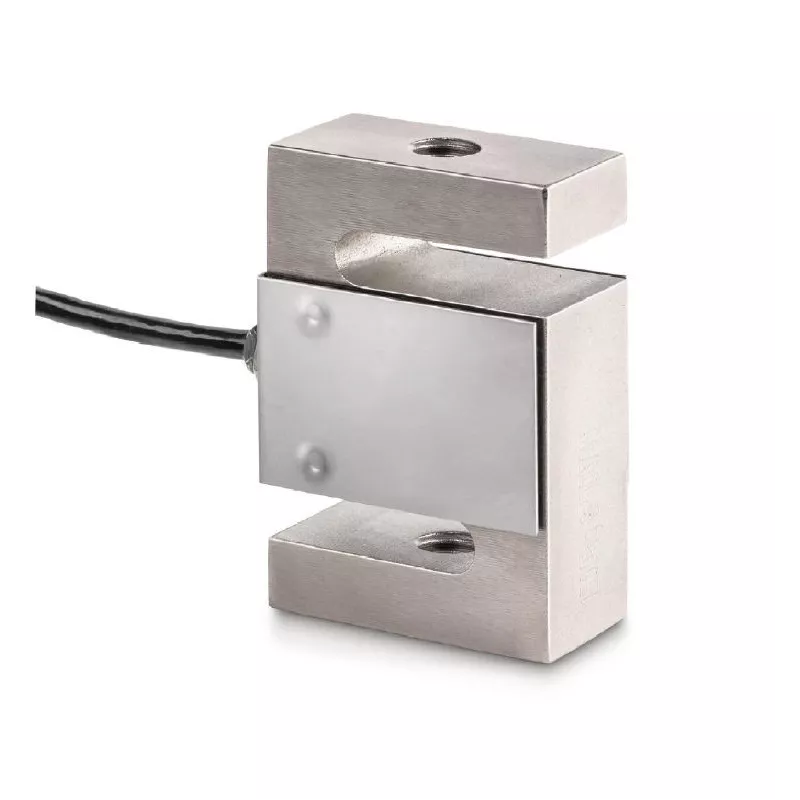

SAUTER CS-PI ► 4 wire “S” measuring cells for force and mass measurement

Read the full description

Click here to view product combination list.

ProtectionIP67 TensileForceMeasurement ForceMeasurement CompressiveForceMeasurement SAUTER MassMeasurement IP67 MeasuringCell 4WireMeasuringCell SAUTERCS-PI CS-PI CS25-3P1

Obtain technical data

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

CS 25-3P1

Characteristics

Total dimensions (W×D×H):

50,8 mm x 76,2 mm x 14,5 mm

Nominal load (kg):

25 kg

Type of protection:

IP67

€200.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 50-3P1

Characteristics

Total dimensions (W×D×H):

50,8 mm x 76,2 mm x 14,5 mm

Nominal load (kg):

50 kg

Type of protection:

IP67

€200.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 100-3P1

Characteristics

Total dimensions (W×D×H):

50,8 mm x 76,2 mm x 20,8 mm

Nominal load (kg):

100 kg

Type of protection:

IP67

€200.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 150-3P1

Characteristics

Total dimensions (W×D×H):

50,8 mm x 76,2 mm x 20,8 mm

Nominal load (kg):

150 kg

Type of protection:

IP67

€200.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 250-3P1

Characteristics

Total dimensions (W×D×H):

50,8 mm x 76,2 mm x 20,8 mm

Nominal load (kg):

250 kg

Type of protection:

IP67

€200.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 500-3P1

Characteristics

Total dimensions (W×D×H):

50,8 mm x 76,2 mm x 20,8 mm

Nominal load (kg):

500 kg

Type of protection:

IP67

€200.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 1000-3P1

Characteristics

Total dimensions (W×D×H):

50,8 mm x 76,2 mm x 27,2 mm

Nominal load (kg):

1000 kg

Type of protection:

IP67

€230.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 1500-3P1

Characteristics

Total dimensions (W×D×H):

50,8 mm x 76,2 mm x 27,2 mm

Nominal load (kg):

1500 kg

Type of protection:

IP67

€230.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 2000-3P1

Characteristics

Total dimensions (W×D×H):

76,2 mm x 101,6 mm x 27,2 mm

Nominal load (kg):

2000 kg

Type of protection:

IP67

€260.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 2500-3P1

Characteristics

Total dimensions (W×D×H):

76,2 mm x 101,6 mm x 27,2 mm

Nominal load (kg):

2500 kg

Type of protection:

IP67

€260.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 5000-3P1

Characteristics

Total dimensions (W×D×H):

76,2 mm x 101,6 mm x 27,2 mm

Nominal load (kg):

5000 kg

Type of protection:

IP67

€260.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 7500-3P1

Characteristics

Total dimensions (W×D×H):

125 mm x 175 mm x 50 mm

Nominal load (kg):

7500 kg

Type of protection:

IP67

€530.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 10000-3P1

Characteristics

Total dimensions (W×D×H):

125 mm x 175 mm x 50 mm

Nominal load (kg):

10000 kg

Type of protection:

IP67

€530.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 15000-3P1

Characteristics

Total dimensions (W×D×H):

160 mm x 200 mm x 60 mm

Nominal load (kg):

15000 kg

Type of protection:

IP67

€690.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 20000-3P1

Characteristics

Total dimensions (W×D×H):

160 mm x 200 mm x 60 mm

Nominal load (kg):

20000 kg

Type of protection:

IP67

€760.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CS 30000-3P1

Characteristics

Total dimensions (W×D×H):

190 mm x 230 mm x 80 mm

Nominal load (kg):

30000 kg

Type of protection:

IP67

€1,950.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

Accuracy in accordance with OIML R60 C3 class C3
protection against dust and water splashes IP67 (in accordance with EN 60529), hermetic seal
Nickel-plated steel
Scope of application: for tensile and compressive force measurement
Suitable for handing scales, weigh hoppers and other weighing devices as well as force measurement devices and test benches
4-wire connection
Note: EX version and accuracy class C4 on request
Nominal sensitivity: 2 mV/V
