Digital force gauge SAUTER FL-M

€690.00 Save 15%

€586.50 Tax excluded

€586.50 - €1,096.50

Condition

New

Reference

FL 2K

SAUTER FL-M ► Premium force-measuring device with graphics display for tensile and compressive force measurement with external measuring cell

Description complète et documents

Click here to view product combination list.

TensileForceMeasurement ForceGauge DigitalForceGauge ForceMeasuring CompressiveForceMeasurement CompressiveForce TensileForce SAUTERFL SAUTER ForceMeasuringDevice Force-measuringDevice FL2K

Obtain technical data

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

FL 2K

Characteristics

Measuring range [Max] N:

2500 N (2.5 kN)

Readout [d] N:

1 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€586.50 HT €690.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FL 5K

Characteristics

Measuring range [Max] N:

5000 N (5 kN)

Readout [d] N:

2 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€909.50 HT €1,070.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FL 10K

Characteristics

Measuring range [Max] N:

10000 N (10 kN)

Readout [d] N:

5 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€1,062.50 HT €1,250.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FL 20K

Characteristics

Measuring range [Max] N:

20000 N (20 kN)

Readout [d] N:

10 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€1,096.50 HT €1,290.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

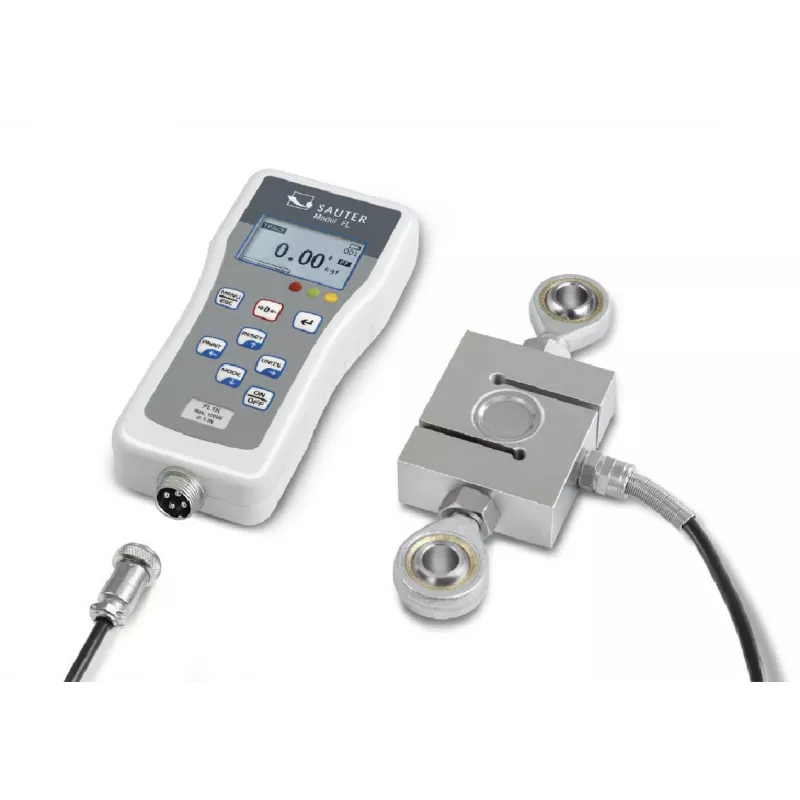

Premium force-measuring device external measuring cell, tension loops included with delivery
Turnable display with backlight
Real time or Peak Hold Mode to observe transcients or capture peaks
Metal housing for durable usage in harsh environmental conditions
Can be mounted on all SAUTER test stands
Capacity display: A bar lights up to show how much of the measuring range is still available
Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed, in pull and push direction. The process is supported by an acoustic and visual signal
Internal memory for up to 500 measurements
Continuous analogue output: Linear voltage signal in relation to the load (-2 – +2 V)
Selectable measuring units: N, kN, kg, oz, lb

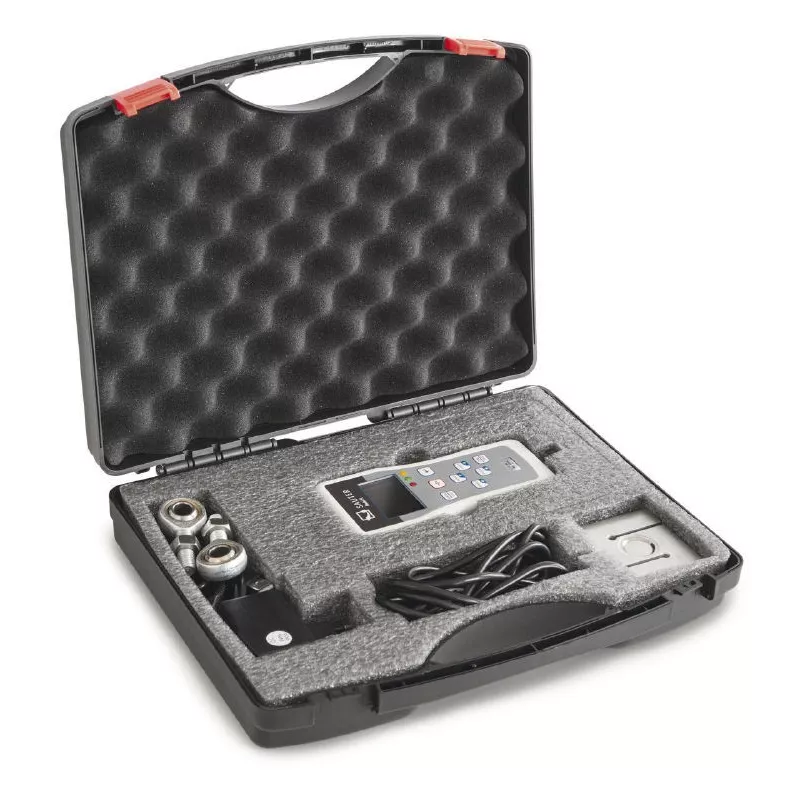

Delivered in a hard carrying case
