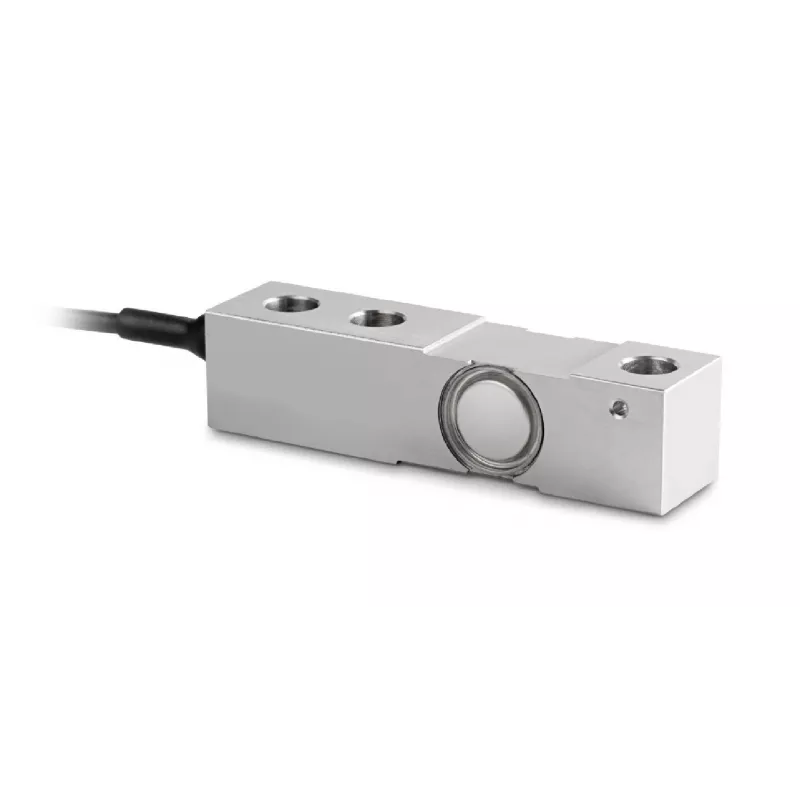

Load cell made from stainless steel CT-Q1
SA
€220.00 Tax excluded
€220.00 - €570.00
Model
Characteristics
Price HT
Stock
Shipping time
Model
Characteristics
Characteristics
Total dimensions (W×D×H):
130 mm x 31,5 mm x 31,5 mm
Nominal load (kg):
300 kg
Type of protection:
IP68/IP69K
€220.00 HT
Price HT
Stock
Shipping time
Action
7
Available from stock
48 - 72h
Model
Characteristics
Characteristics
Total dimensions (W×D×H):
130 mm x 31,5 mm x 31,5 mm
Nominal load (kg):
500 kg
Type of protection:
IP68/IP69K
€220.00 HT
Price HT
Stock
Shipping time
Action
16
Available from stock
48 - 72h
Model
Characteristics
Characteristics
Total dimensions (W×D×H):
130 mm x 31,5 mm x 31,5 mm
Nominal load (kg):
750 kg
Type of protection:
IP68/IP69K
€220.00 HT
Price HT
Stock
Shipping time
Action
13
Available from stock
48 - 72h
Model
Characteristics
Characteristics
Total dimensions (W×D×H):
130 mm x 31,5 mm x 31,5 mm
Nominal load (kg):
1000 kg
Type of protection:
IP68/IP69K
€220.00 HT
Price HT
Stock
Shipping time
Action
17
Available from stock
48 - 72h
Model
Characteristics
Characteristics
Total dimensions (W×D×H):
130 mm x 31,5 mm x 31,5 mm
Nominal load (kg):
1500 kg
Type of protection:
IP68/IP69K
€220.00 HT
Price HT
Stock
Shipping time
Action
9
Available from stock
48 - 72h
Model
Characteristics
Characteristics
Total dimensions (W×D×H):
130 mm x 31,5 mm x 31,5 mm
Nominal load (kg):
2000 kg
Type of protection:
IP68/IP69K
€220.00 HT
Price HT
Stock
Shipping time
Action
14
Available from stock
48 - 72h
Model
Characteristics
Characteristics
Total dimensions (W×D×H):
171,5 mm x 48 mm x 41,5 mm
Nominal load (kg):
3000 kg
Type of protection:
IP68/IP69K
€435.00 HT
Price HT
Stock
Shipping time
Action
9
Available from stock
48 - 72h
Model
Characteristics
Characteristics
Total dimensions (W×D×H):
171,5 mm x 48 mm x 41,5 mm
Nominal load (kg):
5000 kg
Type of protection:
IP68/IP69K
€435.00 HT
Price HT
Stock
Shipping time
Action
5
Available from stock
48 - 72h
Model
Characteristics
Characteristics
Total dimensions (W×D×H):
222 mm x 51 mm x 60 mm
Nominal load (kg):
7500 kg
Type of protection:
IP68/IP69K
€570.00 HT
Price HT
Stock
Shipping time
Action
5
Available from stock
48 - 72h
Description
- Accuracy in accordance with OIML R60 C3
- CE and RoHS compliant
- Dust and spray protection to IP68/IP69K (in accordance with EN 60529), welded to create a hermetic seal
- Stainless steel
- Area of application: Measuring mass as well as compressive force in harsh environments
- Suitable for platform scales, weigh hoppers, flush-mounted floor scales and other weighing devices
- 6-wire connection
- Nominal sensitivity: 2 mV/V
- Note: EX version on request
