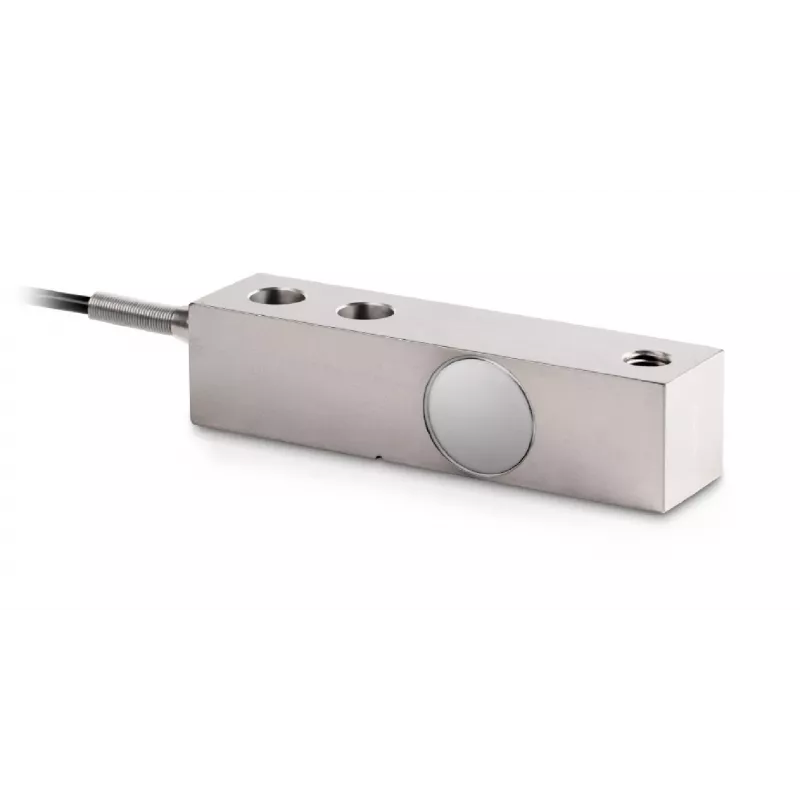

Shear beam measuring cell CT-P1/ CT-P2

€98.00 Tax excluded

€98.00 - €178.00

Condition

New

Reference

CT 500-3P1

SAUTER CT-P1/ CT-P2 ► Load cells made from stainless steel, protection against dust and water splashes IP67, hermetic seal

Description complète et documents

Click here to view product combination list.

Obtain technical data

IP67Protection ProtectionIP67 MeasuringCompressiveForce SAUTER LoadCell IP67 MeasuringCell MeasuringMass CT-P1 CT-P2 MeasuringForce SAUTERCT-P1

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

CT 500-3P1

Characteristics

Total dimensions (W×D×H):

130 mm x 34 mm x 31,8 mm

Description:

Nominal load (kg):

500 kg

Type of protection:

IP67

€98.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CT 1000-3P1

Characteristics

Total dimensions (W×D×H):

130 mm x 34 mm x 31,8 mm

Description:

Nominal load (kg):

1000 kg

Type of protection:

IP67

€98.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CT 1500-3P1

Characteristics

Total dimensions (W×D×H):

130 mm x 34 mm x 31,8 mm

Description:

Nominal load (kg):

1500 kg

Type of protection:

IP67

€98.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CT 2500-3P1

Characteristics

Total dimensions (W×D×H):

171,5 mm x 40 mm x 38,1 mm

Description:

Nominal load (kg):

2500 kg

Type of protection:

IP67

€119.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CT 3000-3P1

Characteristics

Total dimensions (W×D×H):

171,5 mm x 40 mm x 38,1 mm

Description:

Nominal load (kg):

3000 kg

Type of protection:

IP67

€119.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CT 5000-3P1

Characteristics

Total dimensions (W×D×H):

171,5 mm x 40 mm x 38,1 mm

Description:

Nominal load (kg):

5000 kg

Type of protection:

IP67

€119.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CT 10000-3P1

Characteristics

Total dimensions (W×D×H):

222,3 mm x 52,4 mm x 50,8 mm

Description:

Nominal load (kg):

10000 kg

Type of protection:

IP67

€173.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CT 500-3P2

Characteristics

Total dimensions (W×D×H):

130 mm x 34 mm x 31,8 mm

Description:

With adjusted characteristic value (when ordering more than one cell, this saves time by reducing the effort required for corner adjustment)

Nominal load (kg):

500 kg

Type of protection:

IP67

€103.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CT 1000-3P2

Characteristics

Total dimensions (W×D×H):

130 mm x 34 mm x 31,8 mm

Description:

With adjusted characteristic value (when ordering more than one cell, this saves time by reducing the effort required for corner adjustment)

Nominal load (kg):

1000 kg

Type of protection:

IP67

€103.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CT 3000-3P2

Characteristics

Total dimensions (W×D×H):

171,5 mm x 40 mm x 38,1 mm

Description:

With adjusted characteristic value (when ordering more than one cell, this saves time by reducing the effort required for corner adjustment)

Nominal load (kg):

3000 kg

Type of protection:

IP67

€125.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CT 5000-3P2

Characteristics

Total dimensions (W×D×H):

171,5 mm x 40 mm x 38,1 mm

Description:

With adjusted characteristic value (when ordering more than one cell, this saves time by reducing the effort required for corner adjustment)

Nominal load (kg):

5000 kg

Type of protection:

IP67

€124.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

CT 10000-3P2

Characteristics

Total dimensions (W×D×H):

222,3 mm x 52,4 mm x 50,8 mm

Description:

With adjusted characteristic value (when ordering more than one cell, this saves time by reducing the effort required for corner adjustment)

Nominal load (kg):

10000 kg

Type of protection:

IP67

€178.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

Accuracy in accordance with OIML R60 C3
CE and RoHS compliant
protection against dust and water splashes IP67 (in accordance with EN 60529), hermetic seal
Nickel-plated steel
Area of application: Measuring mass as well as compressive force in harsh environments
Suitable for platform scales, weigh hoppers, flush-mounted floor scales and other weighing devices
4-wire connection
Nominal sensitivity: 3 mV/V
Note: EX version, 6-wire connection and accuracy class C4 or C5 on request
