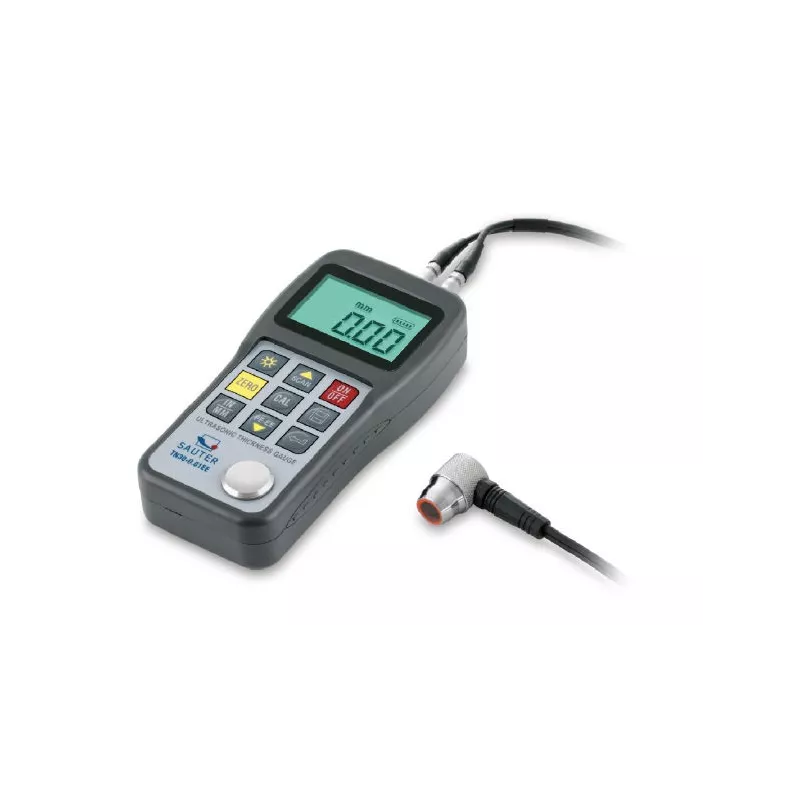

Ultrasonic thickness gauge SAUTER TN-EE

€980.00 Tax excluded

€980.00 - €1,340.00

Condition

New

Reference

TN 30-0.01EE

SAUTER TN-EE ► Hand-hold thickness gauge using the echo-echo method

Description complète et documents

Click here to view product combination list.

Obtain technical data

ThicknessGauge UltrasonicThicknessGauge TN-EE TN SAUTER SAUTERTN-EE TN30-0.01EE TN60-0.01EE 4045761159815 4045761158627

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

TN 30-0.01EE See specifications

Characteristics

Test frequency (MHz):

5 MHz

Readout [d] mm:

0.01 mm

Sonde Ø (mm):

Ø 12 mm

Sound velocity (m/sec):

1000 - 9999 m/sec

Measuring range Echo-echo (mm):

3 - 30 mm

Measuring range Plus-Echo (mm):

0,65 - 600 mm

Option Factory calibration certificate:

€980.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

TN 60-0.01EE See specifications

Characteristics

Test frequency (MHz):

5 MHz

Readout [d] mm:

0.01 mm

Sonde Ø (mm):

Ø 12 mm

Sound velocity (m/sec):

1000 - 9999 m/sec

Measuring range Echo-echo (mm):

3 - 60 mm

Measuring range Plus-Echo (mm):

0,7 - 600 mm

Option Factory calibration certificate:

€1,340.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

External sensor
USB data interfaces as standard
Scan mode (10 measurements per sec.) or single point measuring mode possible
Internal memory for up to 20 files (with up to 100 values per file)
Selectable measuring units: mm, inch
Two measuring modes to determine material thickness:
- - Pulse-echo mode
- - Echo-echo mode
Determining the actual thickness of materials regardless of any coating which might be present. In this way, the wall thickness of pipes, for example can be determined in a non-destructive manner, i.e. without having to remove the coating
Echo-echo measurements are only possible with the measuring head included as part of the delivery (ATU-US12, see accessories)

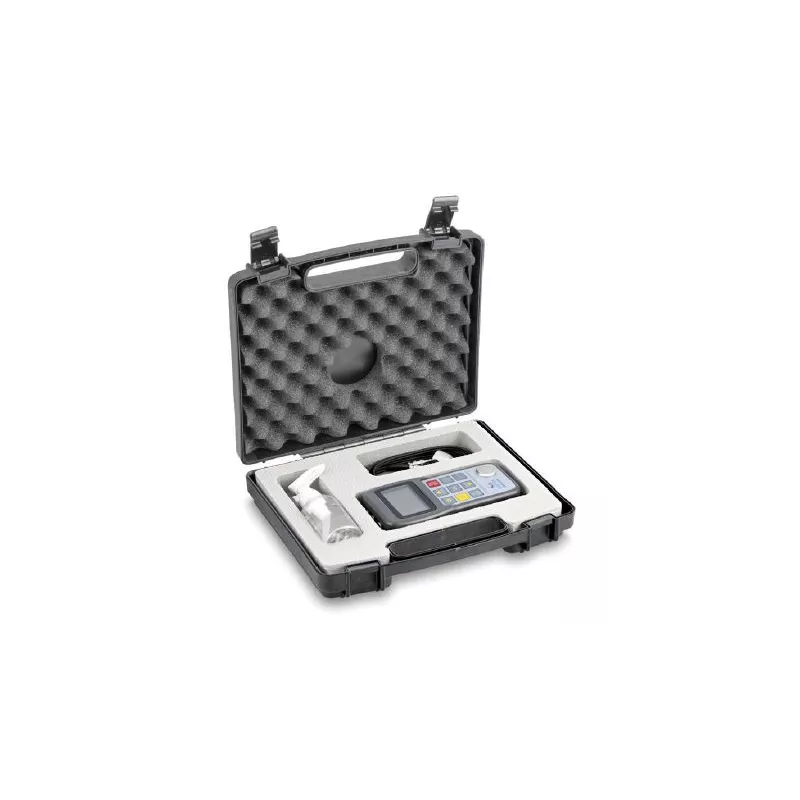

Delivered in a hard carrying case
