Ultrasonic thickness gauge SAUTER TO-EE

€1,490.00 Tax excluded

Condition

New

Reference

TO 100-0.01EE

SAUTER TO-EE ► Hand-hold thickness gauge using the echo-echo method

Read the full description

Click here to view product combination list.

ThicknessGauge Thickness UltrasonicThicknessGauge SAUTER UltrasonicGauge TO100-0.01EE SAUTERTO-EE TO-EE ThicknessMeasuringDevice

Obtain technical data

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

TO 100-0.01EE

Characteristics

Test frequency (MHz):

5 MHz

Readout [d] mm:

0,01| 0,1

Sonde Ø (mm):

Ø 10 mm

Sound velocity (m/sec):

100–19999 m/sec

Measuring range Echo-echo (mm):

3 – 100 mm

Measuring range Plus-Echo (mm):

0,75 – 600 mm

Option Factory calibration certificate:

€1,490.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

Premium thickness measuring device using ultrasonic technology: New NT measuring technology generation with automatic sensor adjustment (V-path correction for improved accuracy and more rapid display speed)
Dual measuring modes to determine material thickness:
- - Pulse-echo mode (to 600 mm)
- - Echo-echo mode (to 100 mm)
Echo-echo measurements: Determining the actual thickness of materials regardless of any existing coating, such as, for example, paint or an anti-corrosion coating on the base metal. In this way, the wall thickness of pipes, for example, can be determined in a non-destructive manner, without having to remove the coating and the measurement can be shown on the display, with the adjustment for the coating thickness already taken into account
Can be used on these materials, as well as others: Metals, plastics, ceramics, composite materials, epoxy, glass and other materials
High-precision mode: Readout accuracy can be switched from 0.1 mm to 0.01 mm

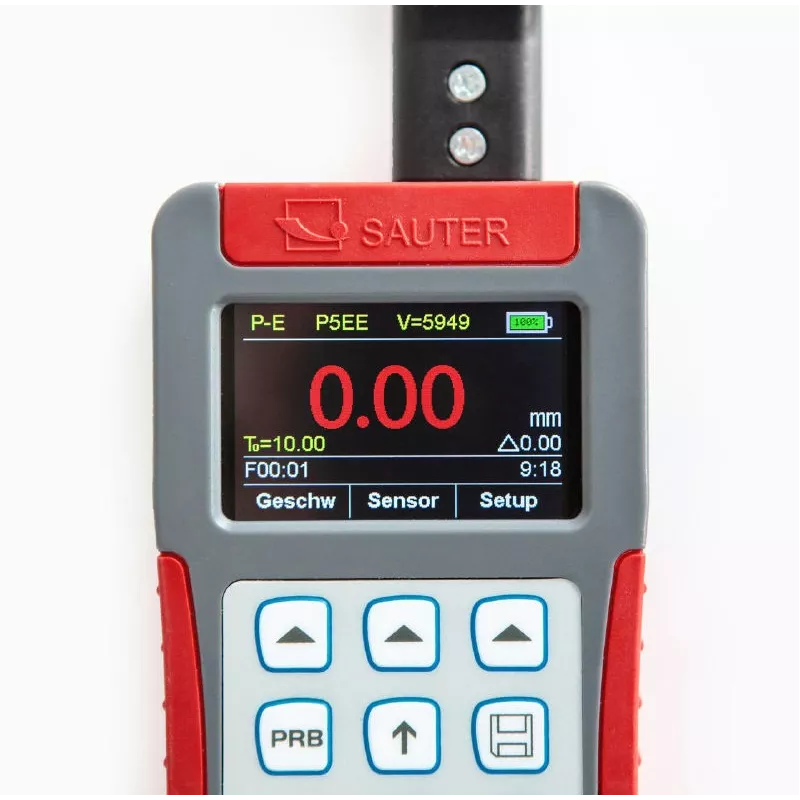

Premium display with colour TFT display (320×240) with adjustable brightness so that it can be read easily in any environmental conditions
Large internal data memory for up to 100 data sets each with 100 individual values
Energy-saving operation with 2×AA batteries and an operating time of at least 100 hours, adjustable power-off time (sleep mode) and adjustable display switch-off (standby mode)

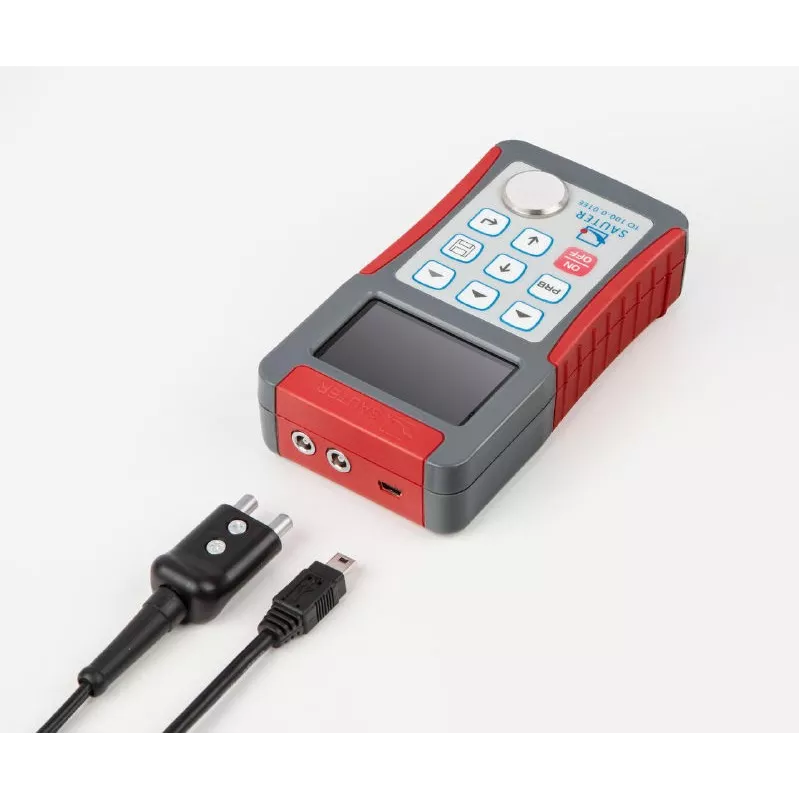

USB data output for easy data download from the device memory to the PC, as standard
Triple-calibration mode: Automatic 0-point adjustment, 1-point adjustment at a specified material thickness, 2-point precision adjustment with two specified material thicknesses
Triple measurement mode with standard measuring (point measurements), scan mode (for continuous measurement and display of the ACTUAL value, the MIN and MAX value of the measuring sequence) and DIFF mode with calculation of the difference between the ACTUAL measured value and a manually defined nominal thickness
Limit alarm function: Upper and lower limits can be programmed. The measurement process is supported by an audible and visual signal
Menu languages: GB, DE, FR, ES, IT
Date and time can be adjusted. It is possible to store the measurement values with a time stamp

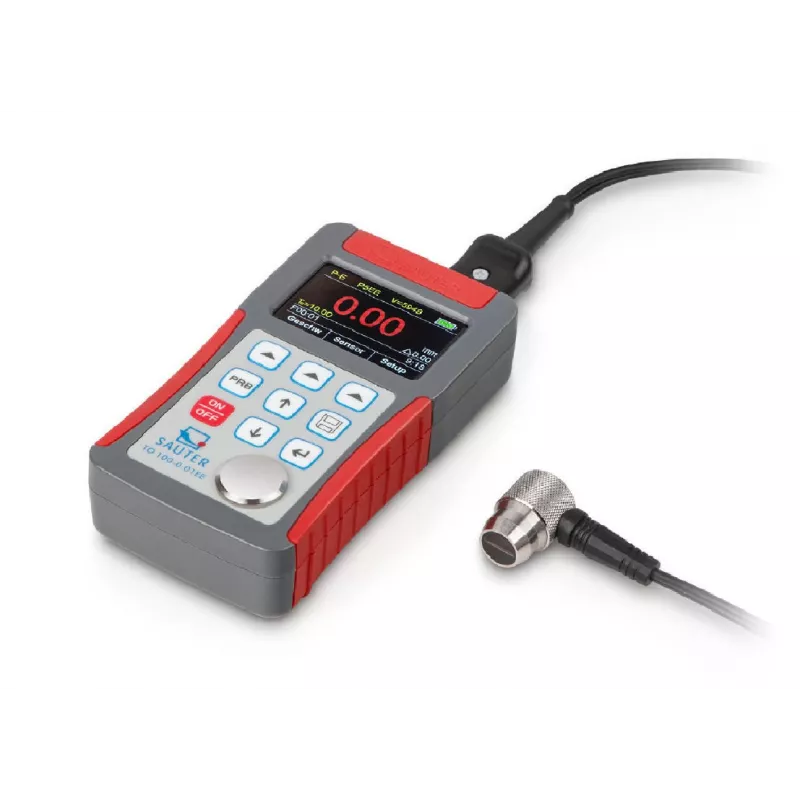

Standard measuring probe ATU-US12 included with delivery

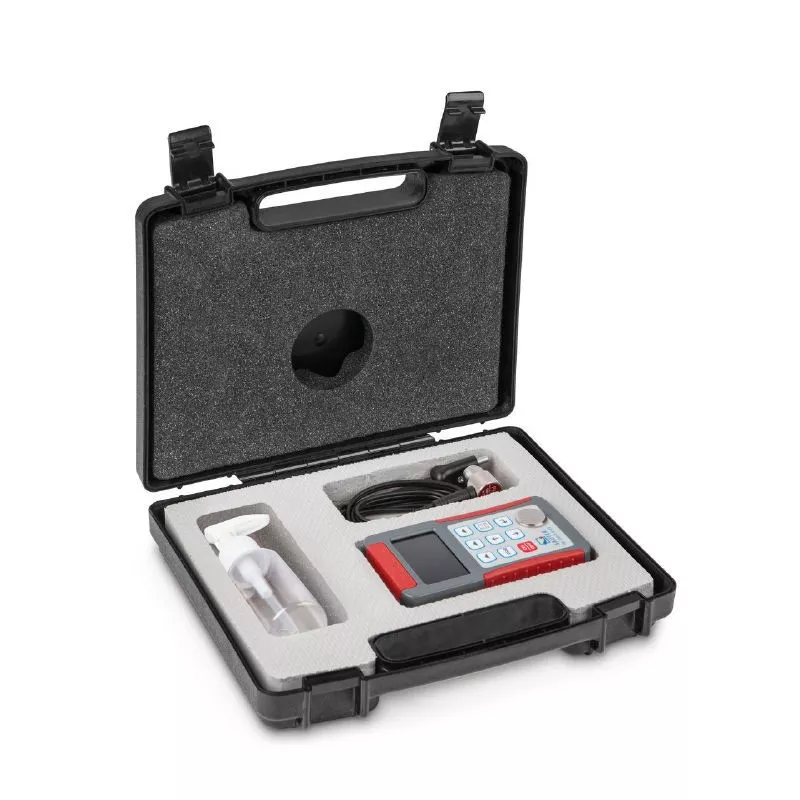

Delivered in a hard carrying case
