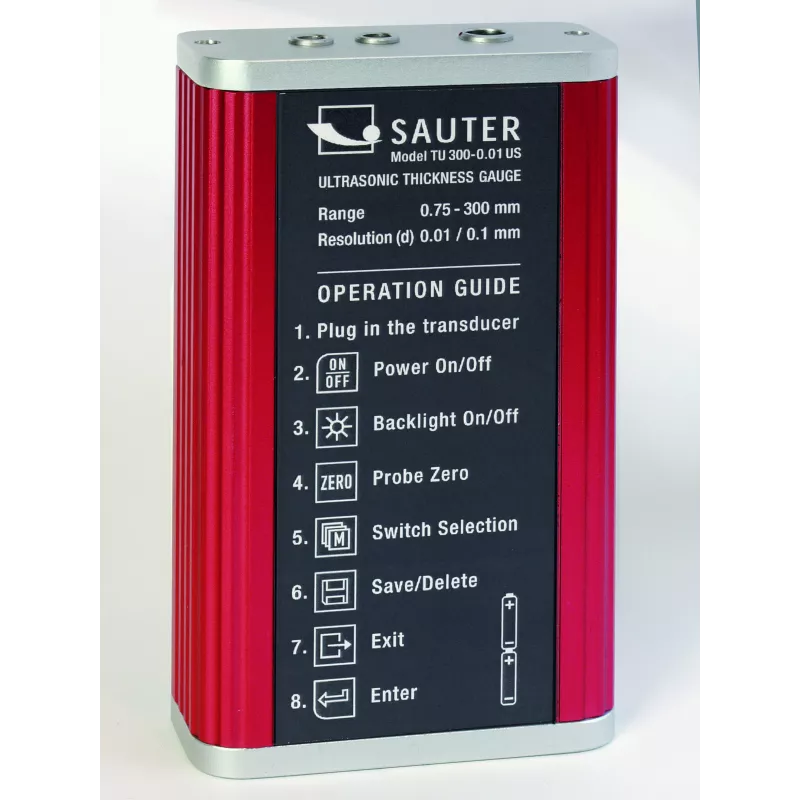

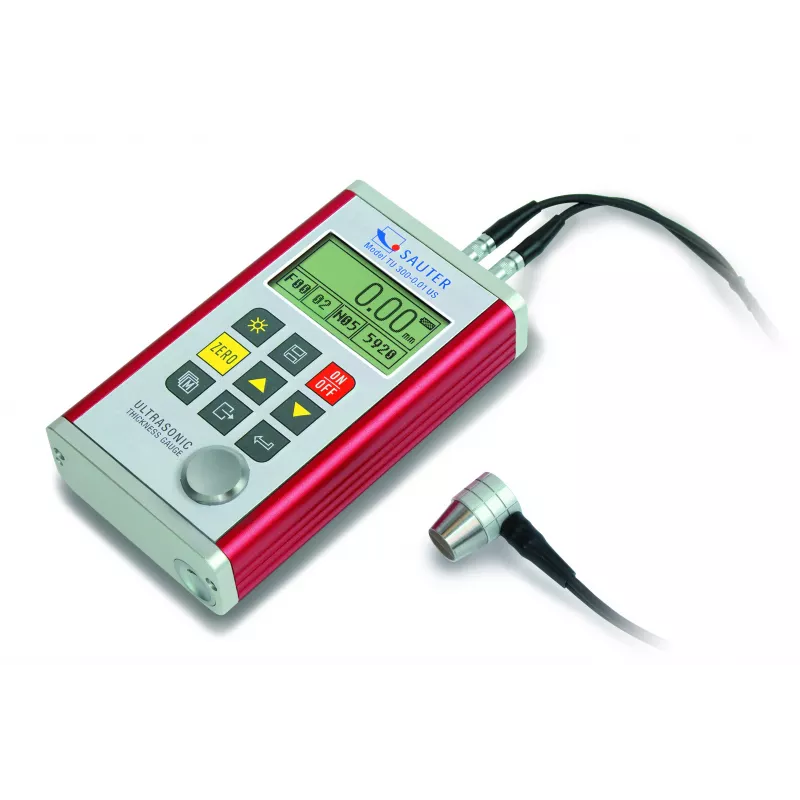

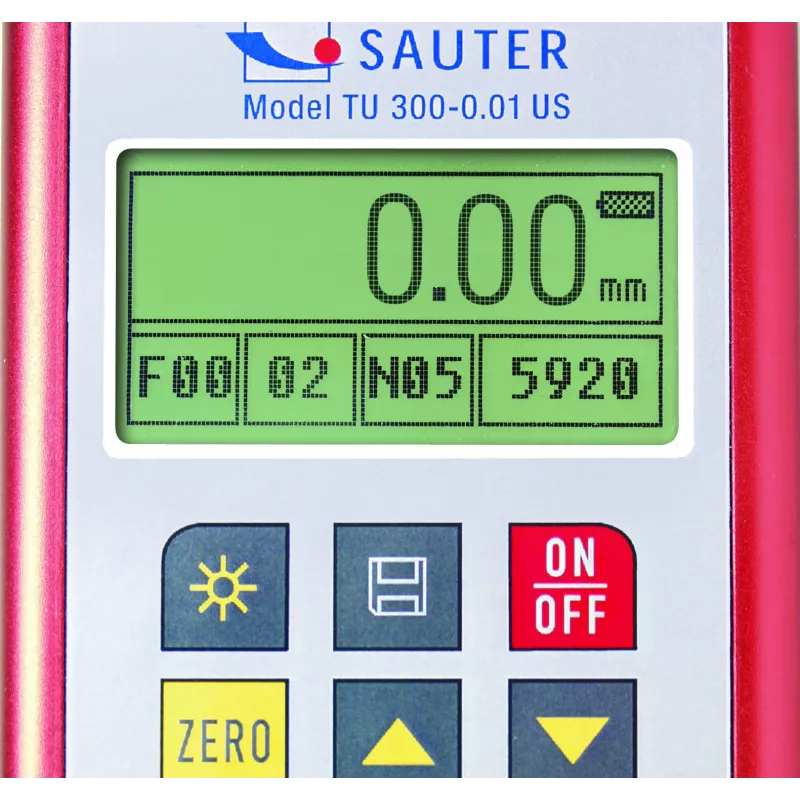

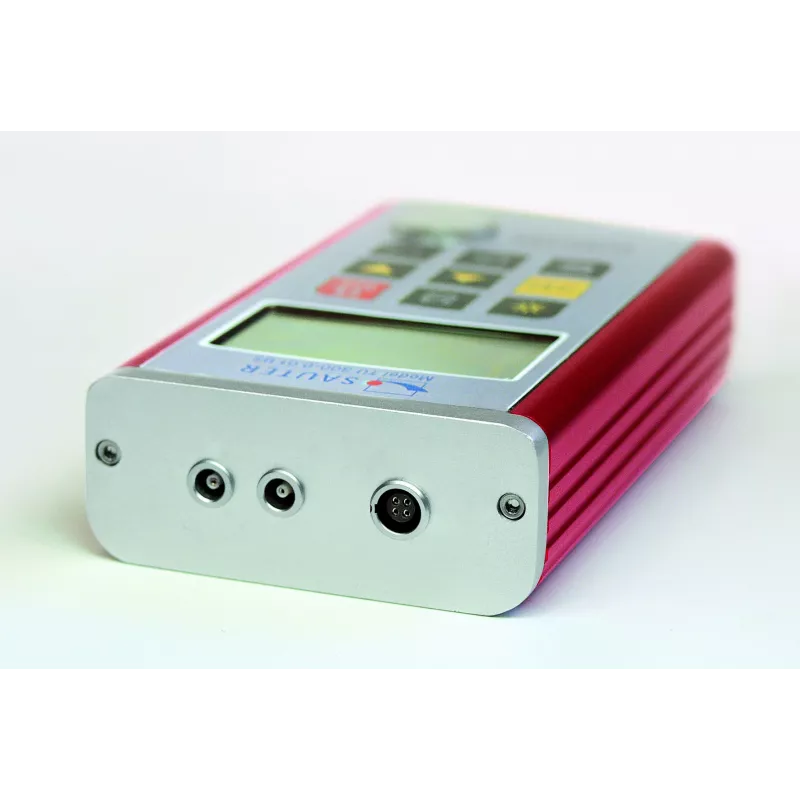

Ultrasonic thickness gauge SAUTER TU-US

€1,310.00 Tax excluded

€1,310.00 - €1,410.00

Condition

New

Reference

TU 80-0.01US

SAUTER TU-US ► Premium ultrasonic thickness gauge

Read the full description

Click here to view product combination list.

ThicknessGauge ExternalSensor UltrasonicThicknessGauge TU-US TU SAUTER SAUTERTU-US TU80-0.01US TU230-0.01US TU300-0.01US 4045761139824 4045761139800

Obtain technical data

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

TU 80-0.01US See specifications

Characteristics

Test frequency (MHz):

7 MHz

Readout [d] mm:

0.01 mm

Sonde Ø (mm):

Ø 6 mm

Sound velocity (m/sec):

1000 - 9999 m/sec

Measuring range Plus-Echo (mm):

0,75 – 80 mm

Option Factory calibration certificate:

€1,310.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

TU 230-0.01US See specifications

Characteristics

Test frequency (MHz):

5 MHz

Readout [d] mm:

0.01 mm

Sonde Ø (mm):

Ø 10 mm

Sound velocity (m/sec):

1000 - 9999 m/sec

Measuring range Plus-Echo (mm):

1,2 – 230 mm

Option Factory calibration certificate:

€1,310.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

TU 300-0.01US See specifications

Characteristics

Test frequency (MHz):

2.5 MHz

Readout [d] mm:

0.01 mm

Sonde Ø (mm):

Ø 14 mm

Sound velocity (m/sec):

1000 - 9999 m/sec

Measuring range Plus-Echo (mm):

3 – 300 mm

Option Factory calibration certificate:

€1,410.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

External sensor for difficult-to-access measurements
Base plate for adjustment included
Data interface RS-232

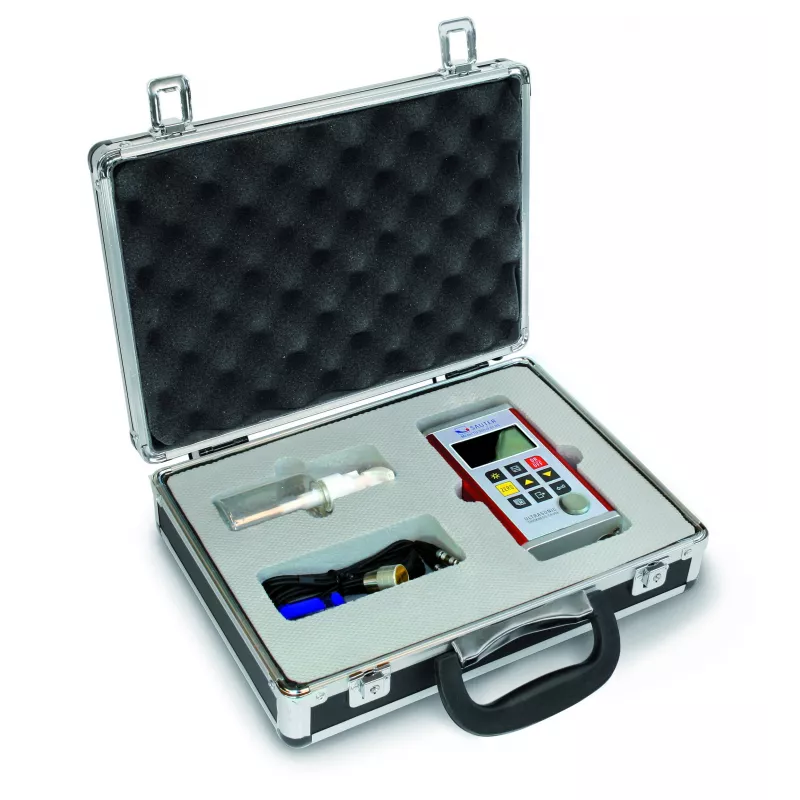

Delivered in a hard carrying case
Scan mode (10 measurements per sec.) or single point measuring mode possible
Internal memory for up to 20 files (with up to 100 values per file)
Function to set limits, programming of Max./Min., in pull and push direction, with output of audible and optical signal. Ideal mode for efficient and accurate testing of standard parts
Selectable measuring units: mm, inch

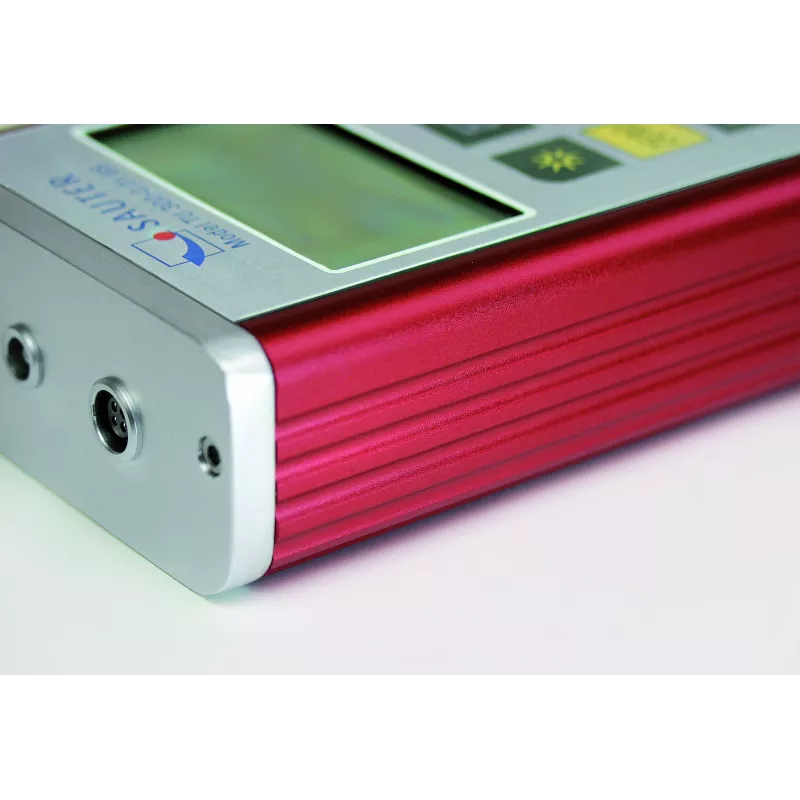

Robust metal housing
