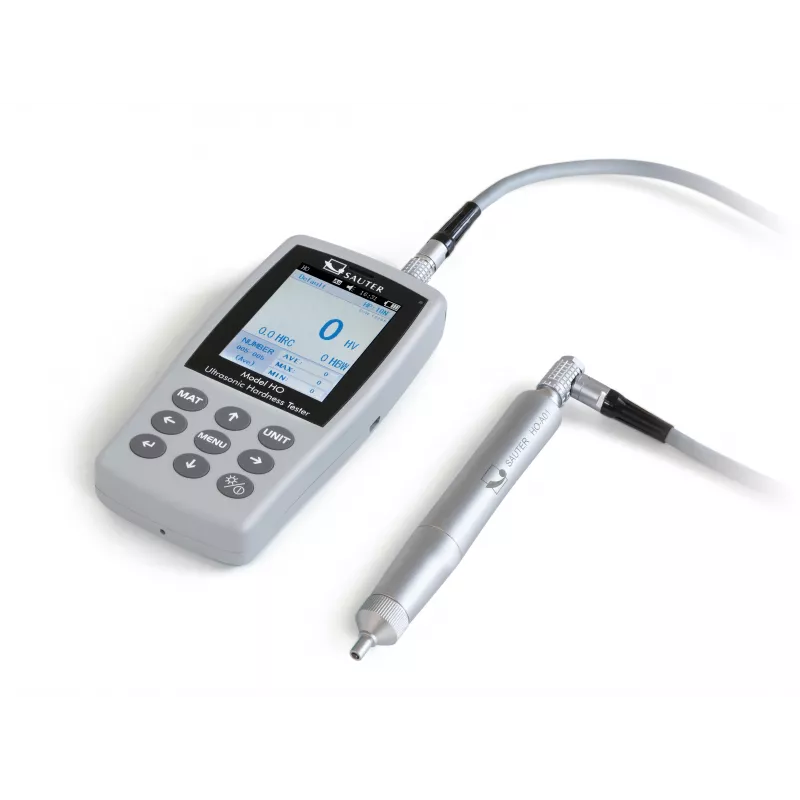

Ultrasound hardness testing device HO

€5,520.00 Tax excluded

Condition

New

Reference

HO 1K

SAUTER HO ► Premium UCI hardness testing device for Rockwell, Brinell and Vickers

Read the full description

Click here to view product combination list.

HO HardnessTestingDevice Rockwell Brinell Vickers UltrasoundHardnessTestingDevi HO1K HO2K HO5K HO10K

Obtain technical data

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

HO 1K See specifications

Characteristics

Hardness scale:

HV 1

Option Factory calibration certificate:

Poid minimum de l‘objet en essai (g):

300 g

Épaisseur minimale de l‘objet en essai (mm):

2 mm

Rugosité de la surface de l'echantillon (µm):

RA max 3,2 µm

€5,520.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

HO 2K See specifications

Characteristics

Hardness scale:

HV 2

Option Factory calibration certificate:

Poid minimum de l‘objet en essai (g):

300 g

Épaisseur minimale de l‘objet en essai (mm):

2 mm

Rugosité de la surface de l'echantillon (µm):

RA max 5 µm

€5,520.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

HO 5K

Characteristics

Hardness scale:

HV 5

Option Factory calibration certificate:

Poid minimum de l‘objet en essai (g):

300 g

Épaisseur minimale de l‘objet en essai (mm):

2 mm

Rugosité de la surface de l'echantillon (µm):

RA max 10 µm

€5,520.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

HO 10K

Characteristics

Hardness scale:

HV 10

Option Factory calibration certificate:

Poid minimum de l‘objet en essai (g):

300 g

Épaisseur minimale de l‘objet en essai (mm):

2 mm

Rugosité de la surface de l'echantillon (µm):

RA max 15 µm

€5,520.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

Application: This ultrasound hardness testing device is ideally suited for mobile hardness testing, where the main emphasis is on obtaining rapid and precise results
Principle: The SAUTER HO measures using a Vickers diamond tip, which is pressed into the test piece with a defined force. After that the tip is moved into high-frequency ultrasound vibrations. The hardness is derived from the attenuation
Examples: The HO ultrasound hardness testing system is primarily used for measuring small forgings, castings, welding points, punched parts, casting tools, ball bearings and the flanks of gear wheels as well as for measuring the influence of warmth or heat
Advantages compared with Rockwell and Brinell: Less test force and therefore only microscopic, small penetrations means that the testing is less destructive
Advantages compared with Vickers: Demanding optical measuring is not required. You can therefore carry out measurements directly on-site, for example, on a permanently installed workpiece
Advantages compared with Leeb: The high requirements for the weight of the test object are no longer required, in most cases
Standards: The device fulfils these technical standards: DIN 50159-1-2008; ASTMA1038-2005; JB/T9377-2013

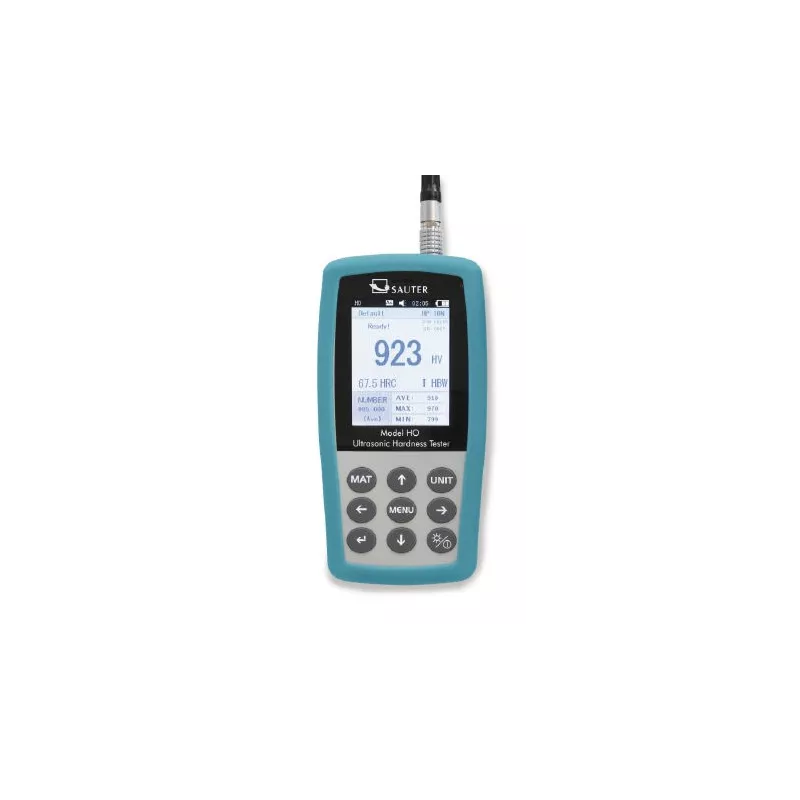

Mini statistics function: Display of the measuring result, the number of measurements, the maximum and minimum value as well as the average value and the standard deviation
Measurement data memory saves up to 1000 measurement groups each with 20 individual values
Calibration: The device can be adjusted to standard hardness comparison plates as well as to individual reference standards

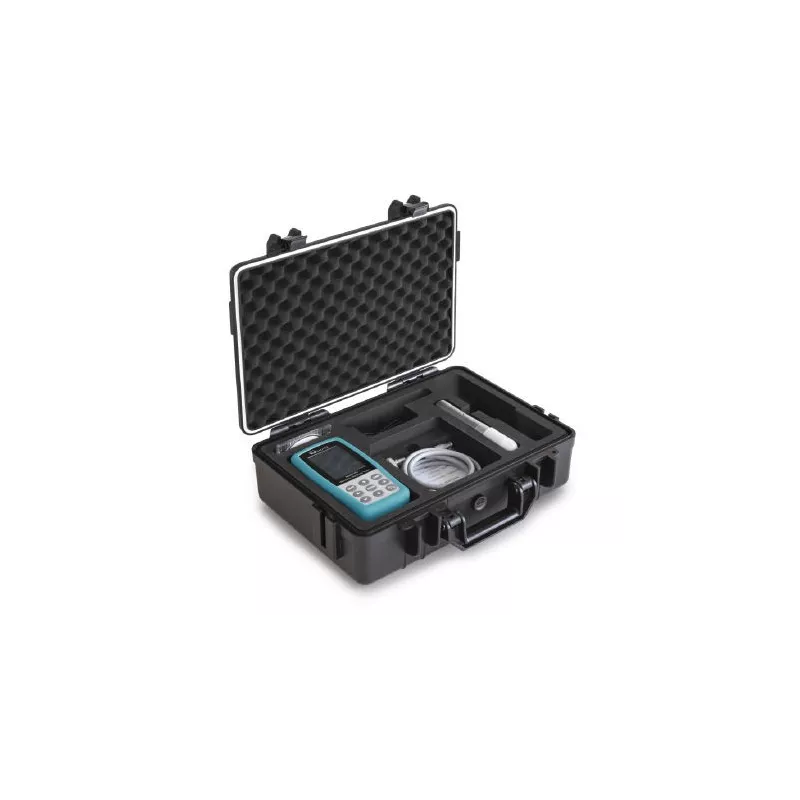

Scope of supplies: Display unit, UCI sensor unit, transport case, software to transfer the saved data to the PC, accessories
