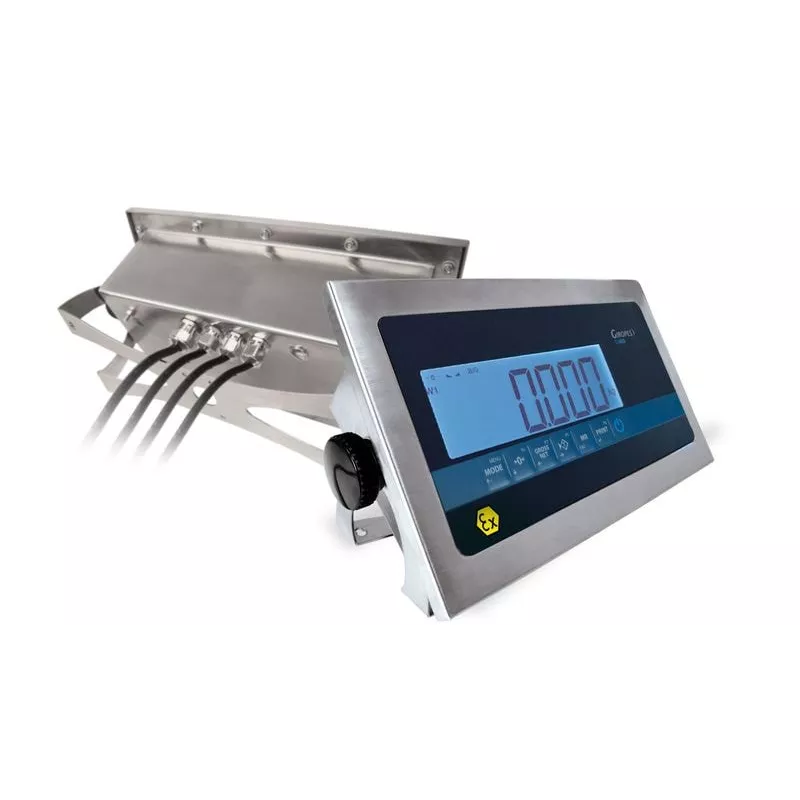

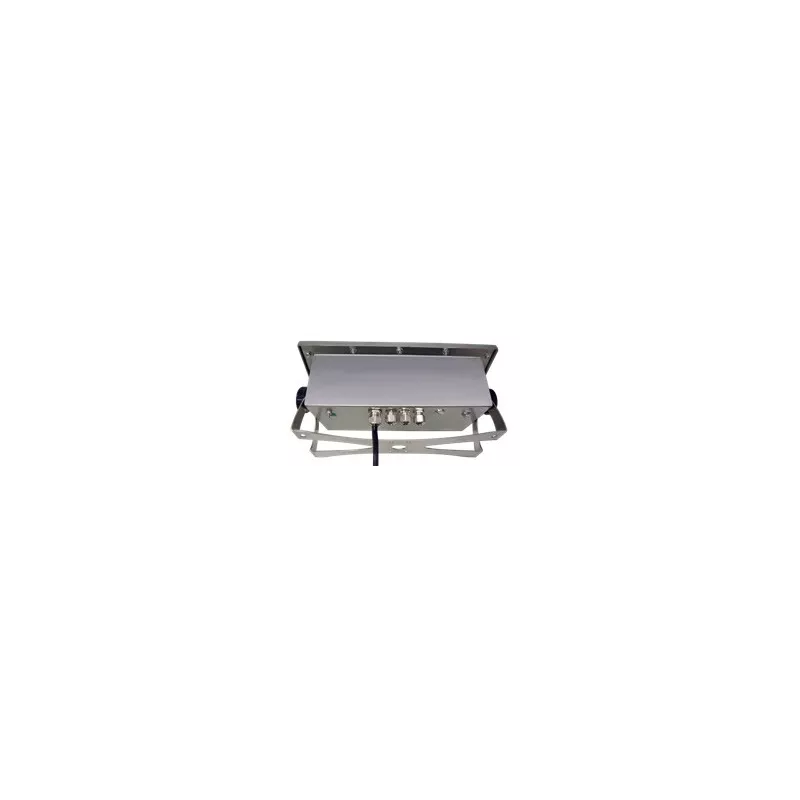

Tare-weight indicator GI400i LCD IP68 ATEX

Weight indicator for classification 2 & 22 ATEX zones in group II, category 3.

• Zone 2: places where flammable gases or vapours are unlikely to be present or are present for short periods of time.
• Zone 22: places where combustible dust is unlikely to be present or is present for short periods of time.

ZONE 2

» Printers
» Spray painting plants
» Petrol stations (areas that are accessible to customers)
» Textile and dyeing plants
» Chemical industry
» Waste processing plants
» Petrochemical industry
» Pharmaceutical industry
» Plastics factories
» Furniture factories

ZONE 22

» Cereal mills
» Waste treatment plants
» Textile industry
» Chemical industry
» Waste processing plants
» Pharmaceutical industry
» Woodworking machinery
» Cereal, legume and coffee
warehouses

Protection methods in accordance with:

• ATEX II 3G Ex nR IIC T6 Gc X (for gases)
• ATEX II 3D tc IIIC T85°C Dc IP68 (for dust)

FEATURES

» Operation in zones 2/22 via power supply
» Operation in zones 2/22 via internal battery (optional)
» Working temperature -10ºC to 40ºC
» Stainless steel housing
» Reclining wall support
» Telephone keypad (GI410 version)
» Units: kg
» Other features:
         » Integrated clock and calendar
         » Format tickets with configurable weighing code
» Screen:
         » Display with 6 digits of 40mm
         » Backlight function: On/off/auto
         » Screen colour indication with checkweigher function
» 2 RS232 output

FUNCTIONS

» REPEATER
» PIECE COUNTING
» TOTALISATION
» CHECKWEIGHER
» NEGATIVE CHECKWEIGHER
» LIMITS
» DOSAGE

» More than 30 protocols
» System of 2 passwords to lock out functions
» 8 format of predefined tickets and 1 customizable (associated software)
» Printing configurable menu: number of copies, cutter on/off, line feed
» Watchdog system to reset automatically if the ndicator gets blocked

PRINTING

» Programmer of three headings (PC), code and total

LANGUAGES

» English, French, Italian, Portuguese and Spanish

METROLOGICAL SPECIFICATIONS

» III and IIII classes
» Max. number of verification steps 6000
» Monorange, multirange or multiinterval (n ≤ 3000, per partial range of weighing)

SOFTWARE*

» For monitoring, management and control of access to the weighing system
