Spring tester SD-M

€2,520.00 Tax excluded

€2,330.00 - €2,520.00

Condition

New

Reference

SD 50N100

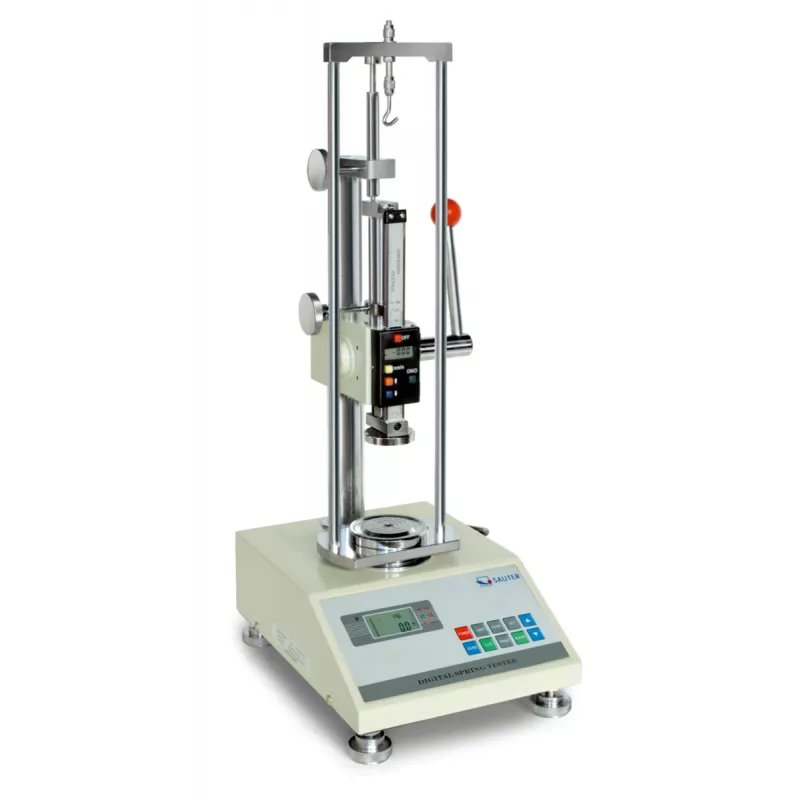

SAUTER SD-M ► Manual test stand for tensile and compressive testing of springs, medium version from 50 N up to 500 N

Description complète et documents

Click here to view product combination list.

50N 100N 200N 500N TestStand Tension Compression Tester Stand SAUTER Spring Tensile

Obtain technical data

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

SD 50N100 See specifications

Characteristics

Measuring range [Max] N:

50 N

Readout [d] N:

0.01 N

Maximum test object length:

100 mm

Maximum test object length:

100 mm

Option ISO calibration certificate:

€2,520.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

SD 100N100 See specifications

Characteristics

Measuring range [Max] N:

100 N

Readout [d] N:

0.02 N

Maximum test object length:

100 mm

Maximum test object length:

100 mm

Option ISO calibration certificate:

€2,520.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

SD 200N100 See specifications

Characteristics

Measuring range [Max] N:

200 N

Readout [d] N:

0.05 N

Maximum test object length:

100 mm

Maximum test object length:

100 mm

Option ISO calibration certificate:

€2,330.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

Spring tester for tension and compression tests

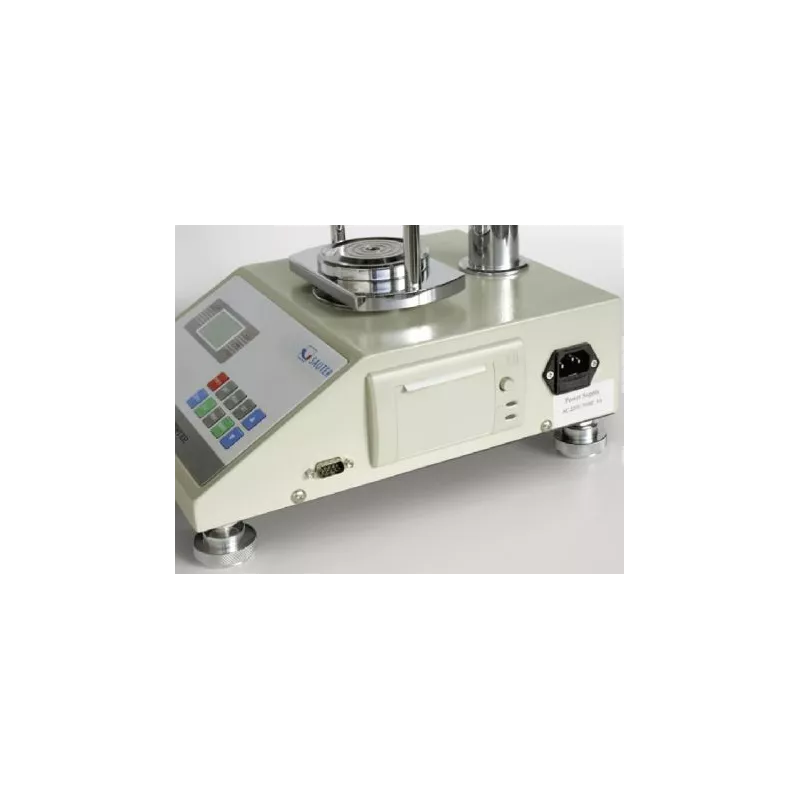

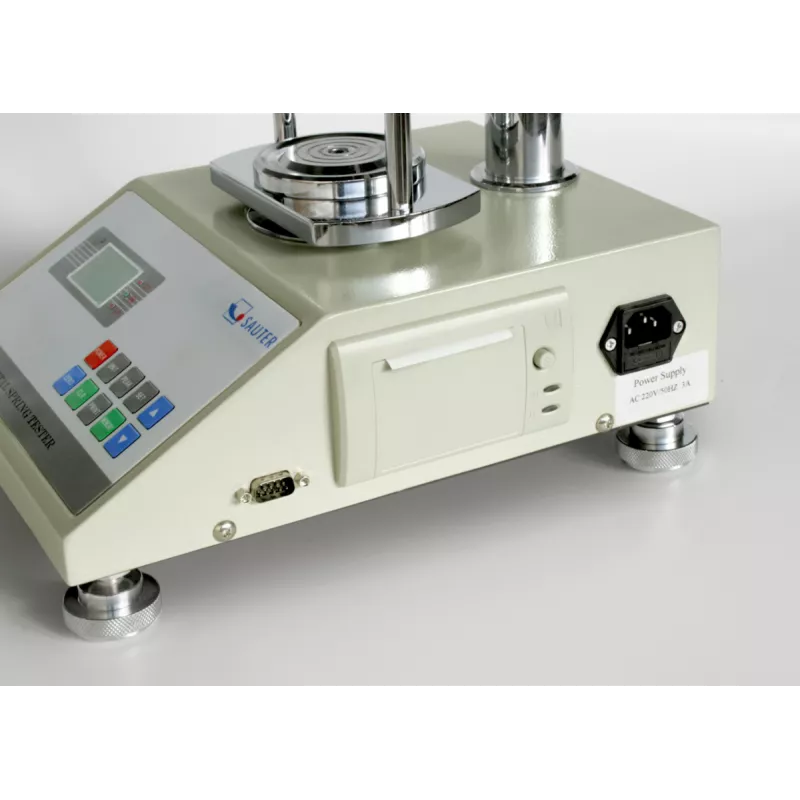

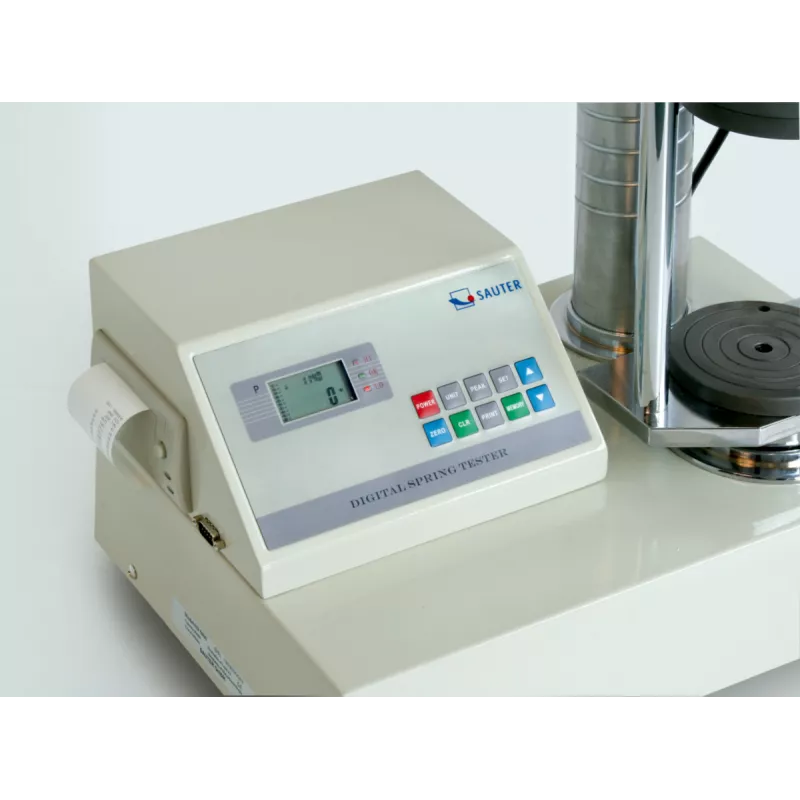

Integrated thermal printer
Digital length measuring unit:
- - Manual zero adjustment possible
- - Pre-length can be set manually
- - Readout: 0,01 mm
10 memories to print out the results or to calculate average values
Function to set limits: Input of an upper/lower limit value. A visual and acoustic signal supports the measuring operation

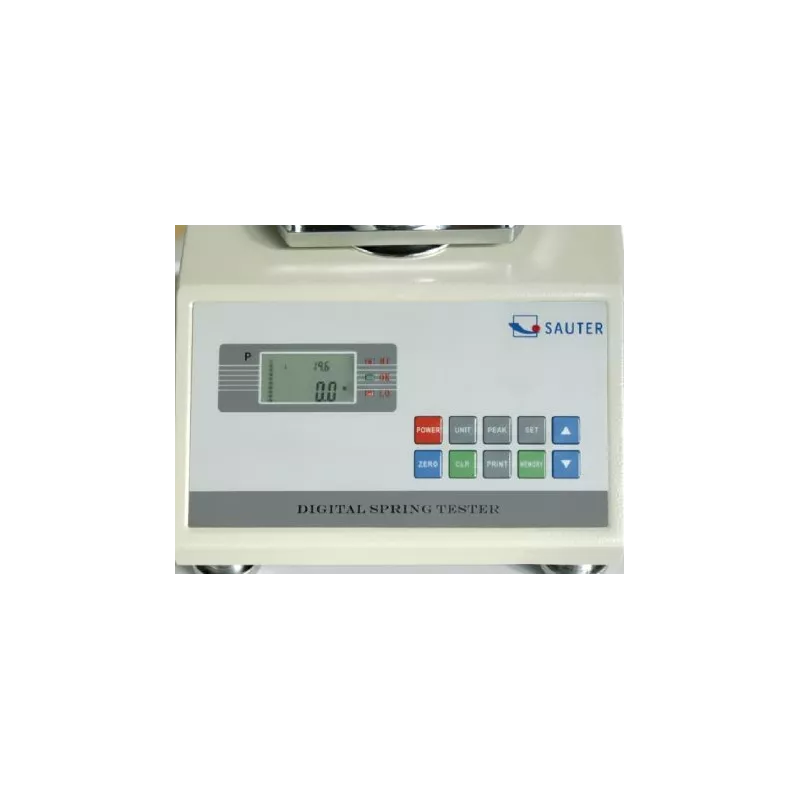

Peak load display (peak hold)
Selectable measuring units: kg, lbf, N
