Platform with steel framework (600kg) BAXTRAN ZFD

FEATURES:

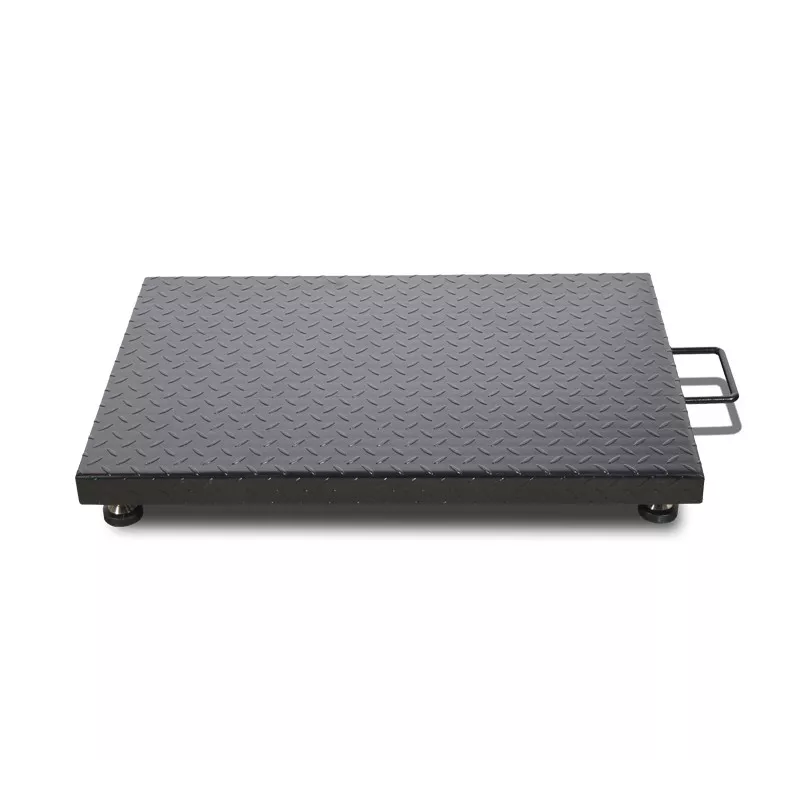

• Platform with 4 load cells with steel framework and diamond plate up to 5mm thick.
• Junction box in ABS, IP66.

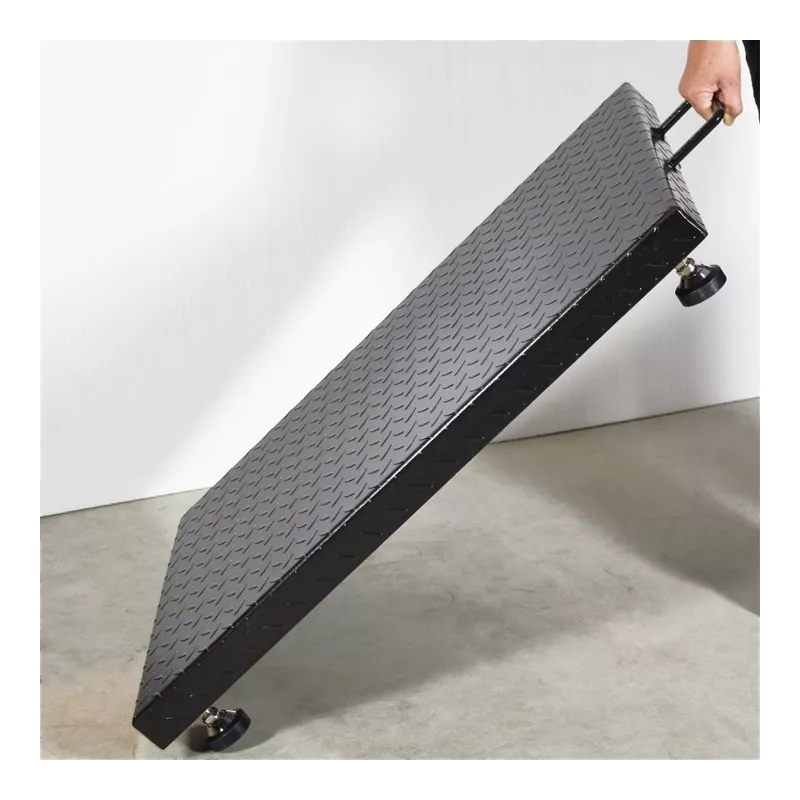

• Lifting handle for installation and maintenance.

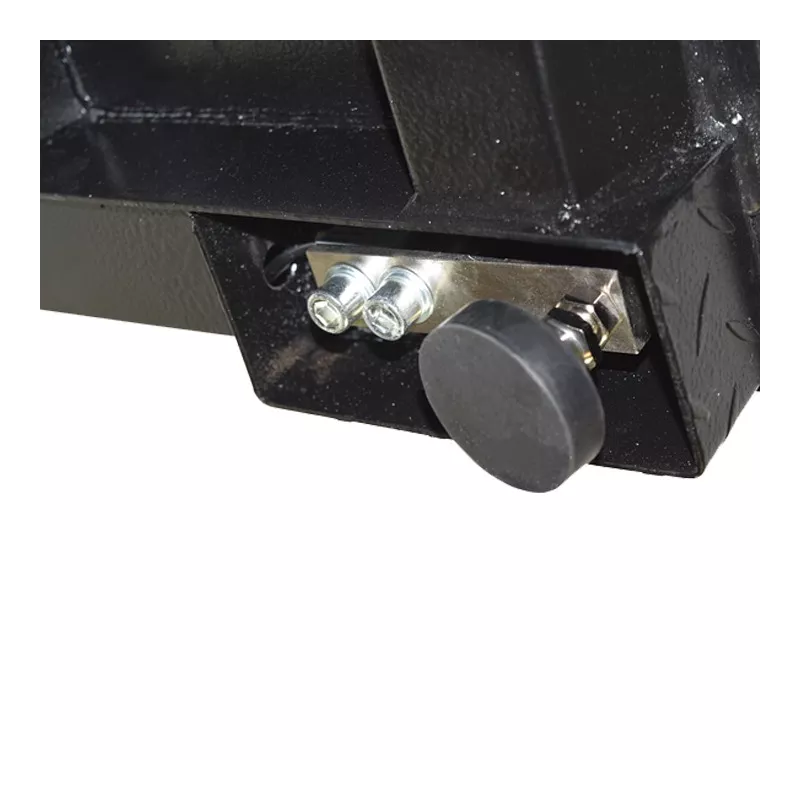

• It can be installed on ground. • Adjustable feet in height.

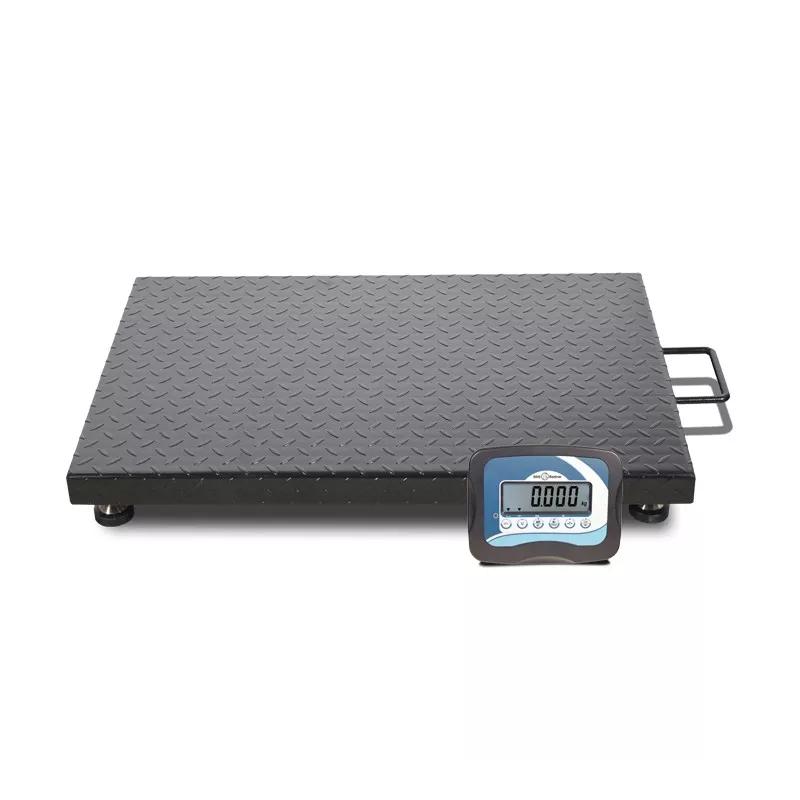

• ABS indicator, model BR15.
• Backlight LCD display with six 30 mm height digits.
• Backlight of the display with 3 types: automatic, activated and deactivated.
• IP54 protection.
• Waterproof keyboard with 5 function keys and ON/OFF keys.
• Keyboard functions: Unit selector, zero, tare, accumulation and manual data transfer to PC or printer.
• Rechargeable internal battery 6V/4Ah.
• Operating temperature range: -10ºC +40ºC.
• Unique range, multi-range or multi-interval.
• Power supply with adaptor AC/DC 240Vac 50Hz.
• Unit 1 to choose: off, kg, t and g; Unit 2 to choose: off, lb, lboz; Unit 3 to choose: off, Taiwan Jin, CA or VISS.
• RS232 output (PC and print formats). • Auto switch off (programmable: from 1 to 99 minutes).

FUNCTIONS:

• Accumulation
• Totalization
• Piece counting
• Zero
• Hold 4 modes: deactivate, filter for animals, peak value, stable weight and stable weight with auto cancel in zero
• Check weighing (limits function) visual and alarm signals
• Three speeds of AD converter (high, medium and low)
• Programmable gravity
• Gross/Net
• Tare
