Manual shore test stand SAUTER TI

€355.00 Tax excluded

€270.00 - €445.00

Condition

New

Reference

TI-D

SAUTER TI ► Lever operated test stand for hardness testing with base plate made out of glass

Description complète et documents

Click here to view product combination list.

Obtain technical data

HardnessTesting Stand SAUTER Plate Hardness Base Test Manual Glass Made Shore Testing

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

TI-D See specifications

Characteristics

Suitable for:

HBD

Hardness type:

Shore D

Force de contrôle de mesure de la dureté (N):

50 N

Hauteur de l’object d’essai [Max] mm:

60 mm

Dimensions totales (L×P×H) mm:

150 mm×200 mm×400 mm

€355.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

TI-DL See specifications

Characteristics

Suitable for:

HDD

Hardness type:

Shore D

Force de contrôle de mesure de la dureté (N):

50 N

Hauteur de l’object d’essai [Max] mm:

290 mm

Dimensions totales (L×P×H) mm:

150 mm×200 mm×580 mm

€445.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

TI-AC

Characteristics

Suitable for:

HBA, HB0

Hardness type:

Shore A

Force de contrôle de mesure de la dureté (N):

10 N

Hauteur de l’object d’essai [Max] mm:

60 mm

Dimensions totales (L×P×H) mm:

150 mm×200 mm×330 mm

€270.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

TI-ACL See specifications

Characteristics

Suitable for:

HDA, HD0

Hardness type:

Shore A

Force de contrôle de mesure de la dureté (N):

10 N

Hauteur de l’object d’essai [Max] mm:

290 mm

Dimensions totales (L×P×H) mm:

150 mm×200 mm×580 mm

€365.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

For Shore hardness testing of plastics, leather etc.

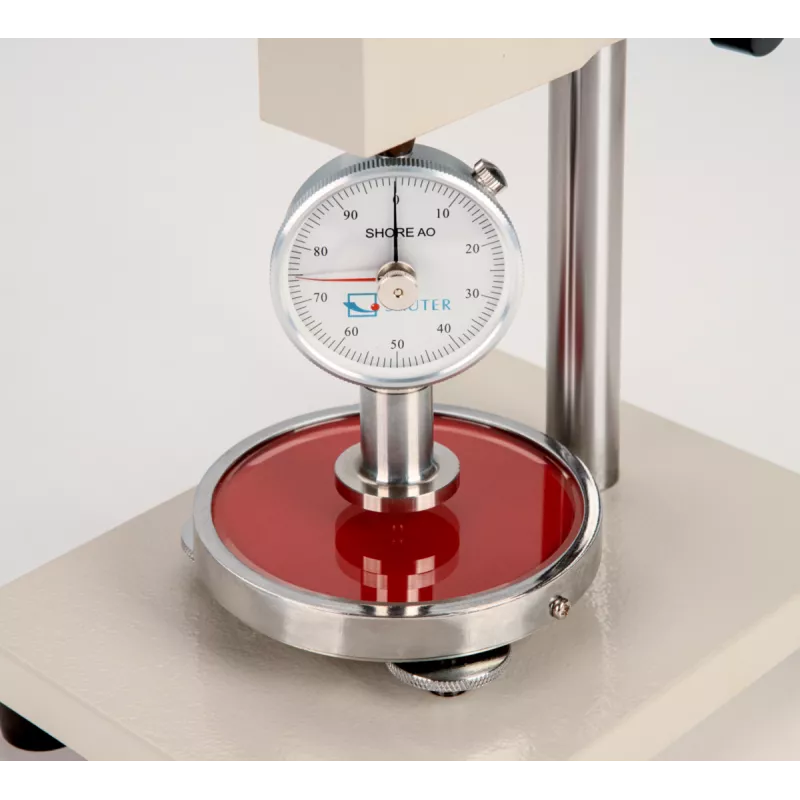

Glass plate: Providing a higher base hardness and superior accuracy
Mechanical construction: Robust design for precise measuring

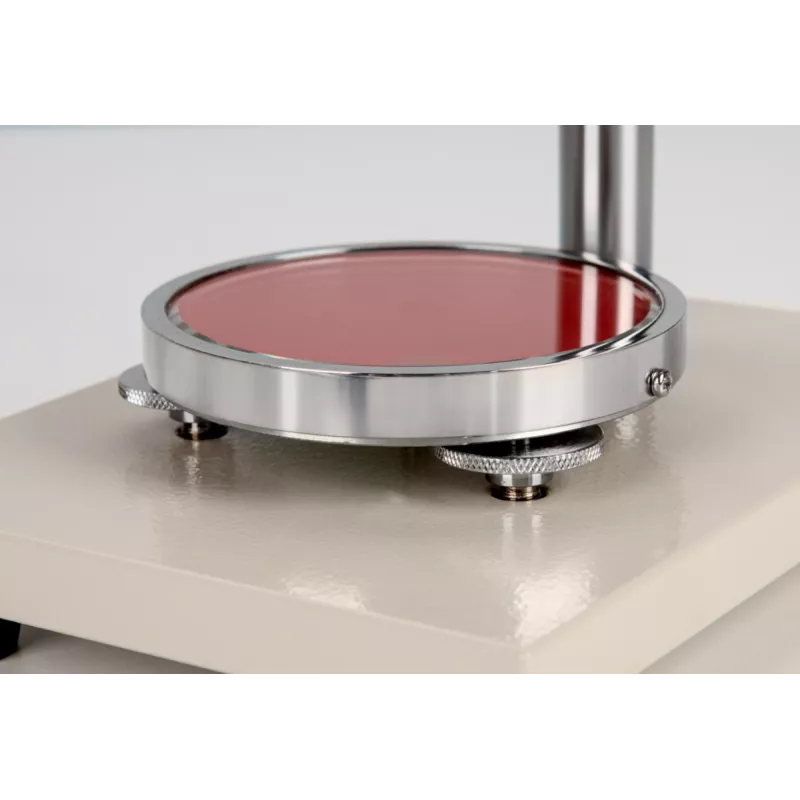

Level adjustment: For the precise levelling of the base plate blate
SAUTER test bench TI-DL, with interchangeable, longer guide column for digital hardness testers HD
Hardness tester not included

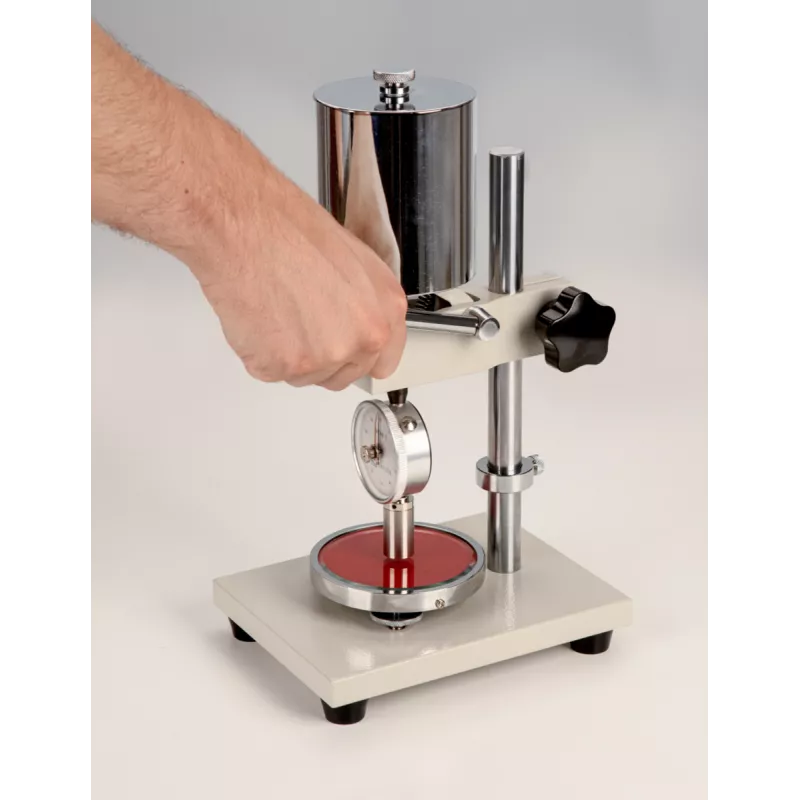

Operation:
- 1. The SAUTER hardness testing device HB is fitted in a suspended position
- 2. The test object is placed on the round testing table right under the durometer pin
- 3. By lowering the handle lever, the measurement instrument is pressed in a controlled manner into the test object
The accuracy of the displayed result is approx. 25 % higher than in a manual operated test
