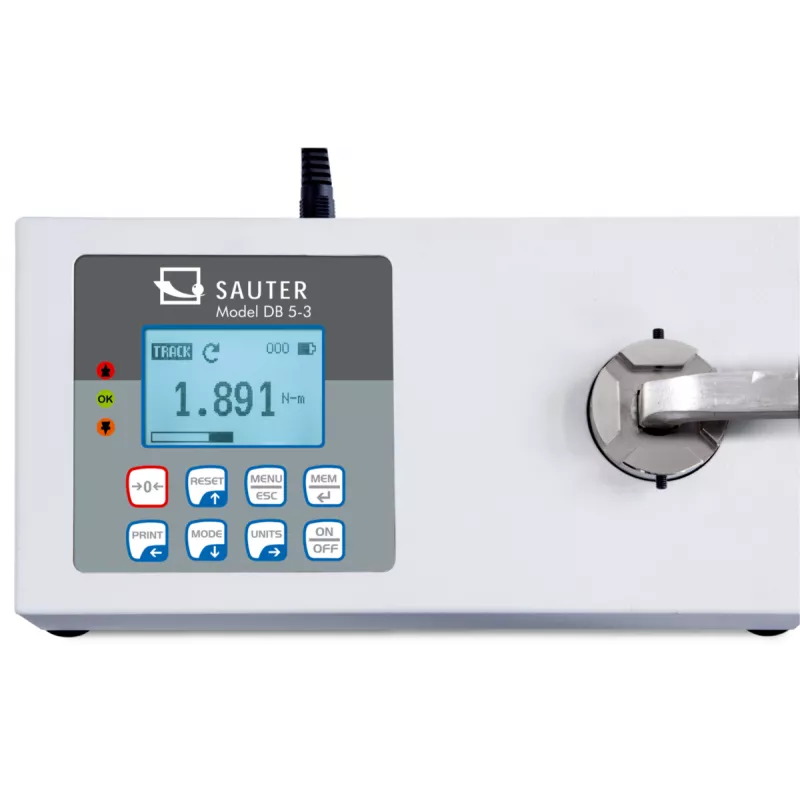

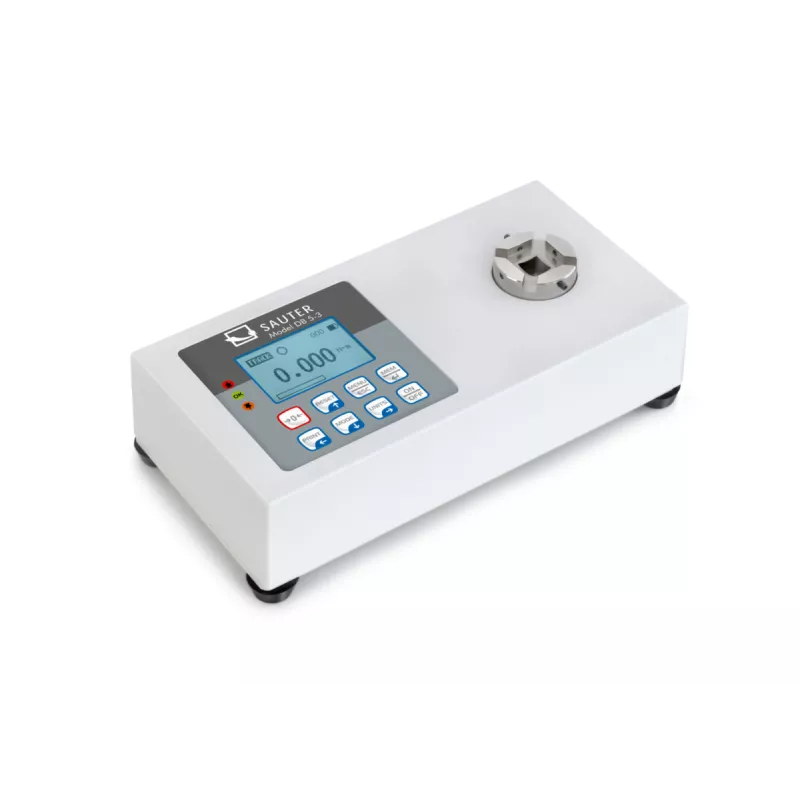

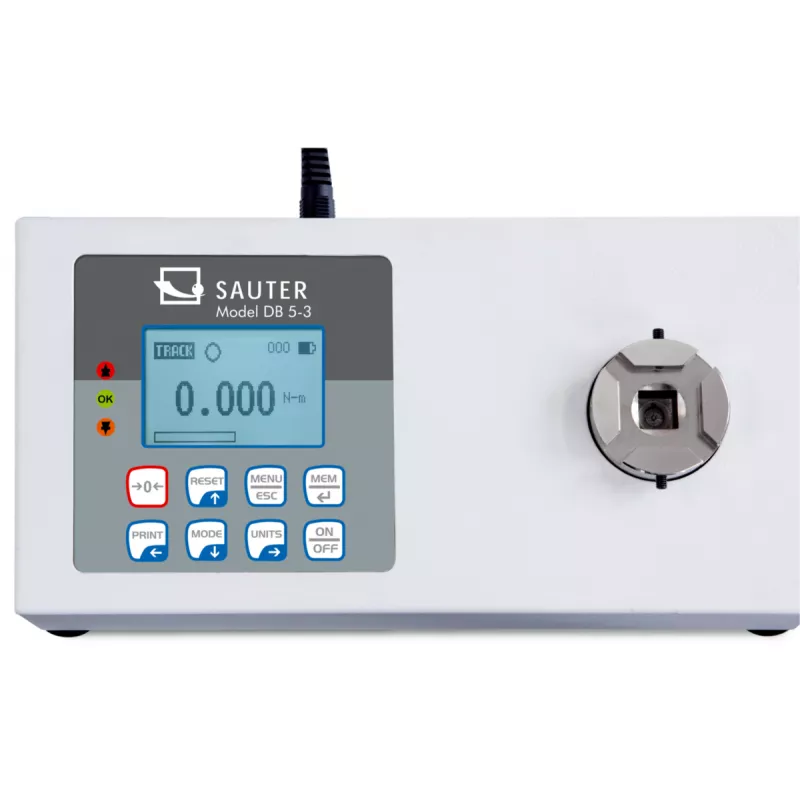

Digital torque gauge SAUTER DB

€1,750.00 Tax excluded

€1,750.00 - €1,990.00

Condition

New

Reference

DB 0.5-4

SAUTER DB ► Convenient way to test the torque of tools

Description complète et documents

Click here to view product combination list.

Obtain technical data

DB Gauge SAUTER DigitalTorqueGauge SAUTERDB Digital Test Convenient Torque Way Tools TestTheTorqueOfToolsDB

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

DB 0.5-4 See specifications

Characteristics

Measuring range [Max] Nm:

0,5 Nm

Readout [d] Nm:

0,0001 Nm

Option Factory calibration certificate:

€1,750.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

DB 1-4 See specifications

Characteristics

Measuring range [Max] Nm:

1 Nm

Readout [d] Nm:

0,0002 Nm

Option Factory calibration certificate:

€1,750.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

DB 5-3 See specifications

Characteristics

Measuring range [Max] Nm:

5 Nm

Readout [d] Nm:

0,001 Nm

Option Factory calibration certificate:

€1,750.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

DB 10-3 See specifications

Characteristics

Measuring range [Max] Nm:

10 Nm

Readout [d] Nm:

0,002 Nm

Option Factory calibration certificate:

€1,750.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

DB 20-3 See specifications

Characteristics

Measuring range [Max] Nm:

20 Nm

Readout [d] Nm:

0,005 Nm

Option Factory calibration certificate:

€1,990.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

DB 50-2 See specifications

Characteristics

Measuring range [Max] Nm:

50 Nm

Readout [d] Nm:

0,01 Nm

Option Factory calibration certificate:

€1,990.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

DB 100-2 See specifications

Characteristics

Measuring range [Max] Nm:

100 Nm

Readout [d] Nm:

0,02 Nm

Option Factory calibration certificate:

€1,990.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

DB 200-2 See specifications

Characteristics

Measuring range [Max] Nm:

200 Nm

Readout [d] Nm:

0,05 Nm

Option Factory calibration certificate:

€1,990.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

DB 500-2 See specifications

Characteristics

Measuring range [Max] Nm:

500 Nm

Readout [d] Nm:

0,1 Nm

Option Factory calibration certificate:

€1,990.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

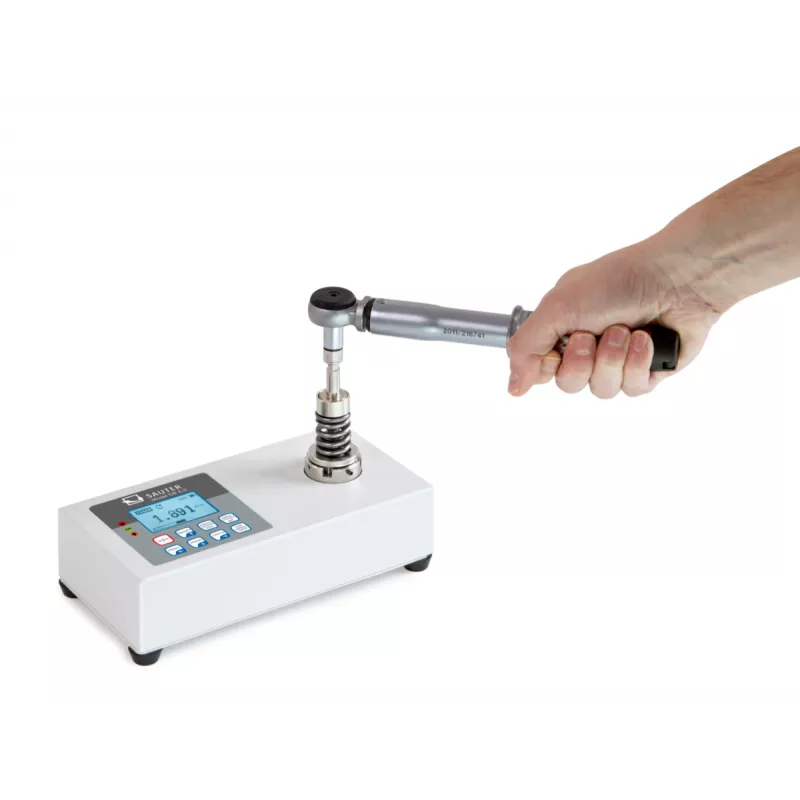

Particularly suitable for testing torque wrenches, electric hand screwdrivers and cordless screwdrivers

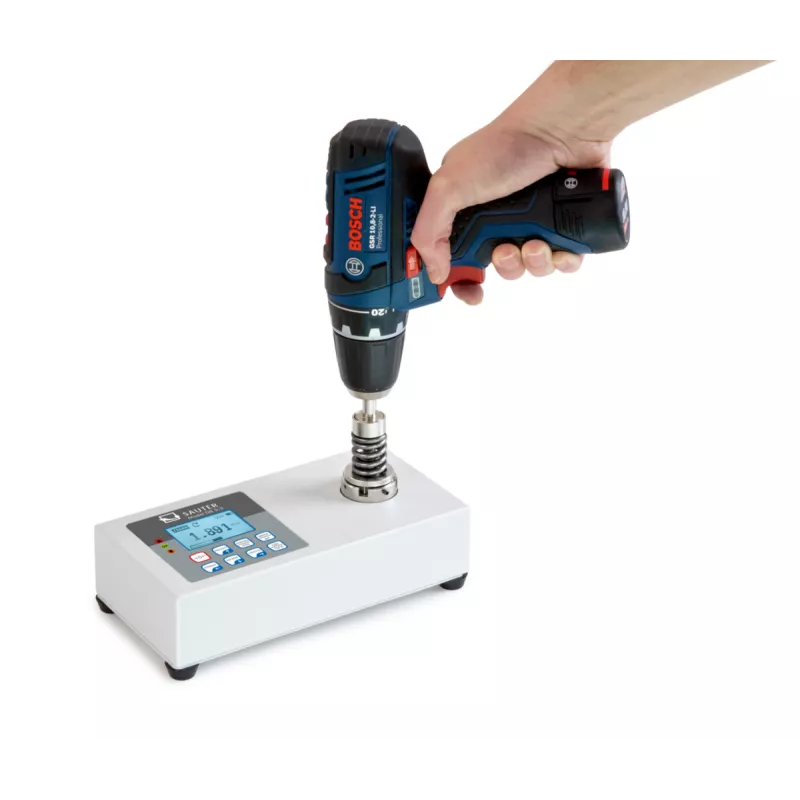

Rotary sensor for dynamic testing of electric screwdrivers (for models with [Max] ≤ 50 Nm)
Measurement precision: +/- 0,5% of [Max]
Metal housing for durable usage in harsh environmental conditions
Capacity display: A bar lights up to show how much of the measuring range is still available
Back-lit LCD graphic display
num/1] Rubber feet with anti-slip feature (for models with [Max] ≤ 10 Nm)
Robust mounting plate for secure fixing (for models with [Max] ≥ 20 Nm)
USB and RS 232 data interfaces to the PC included

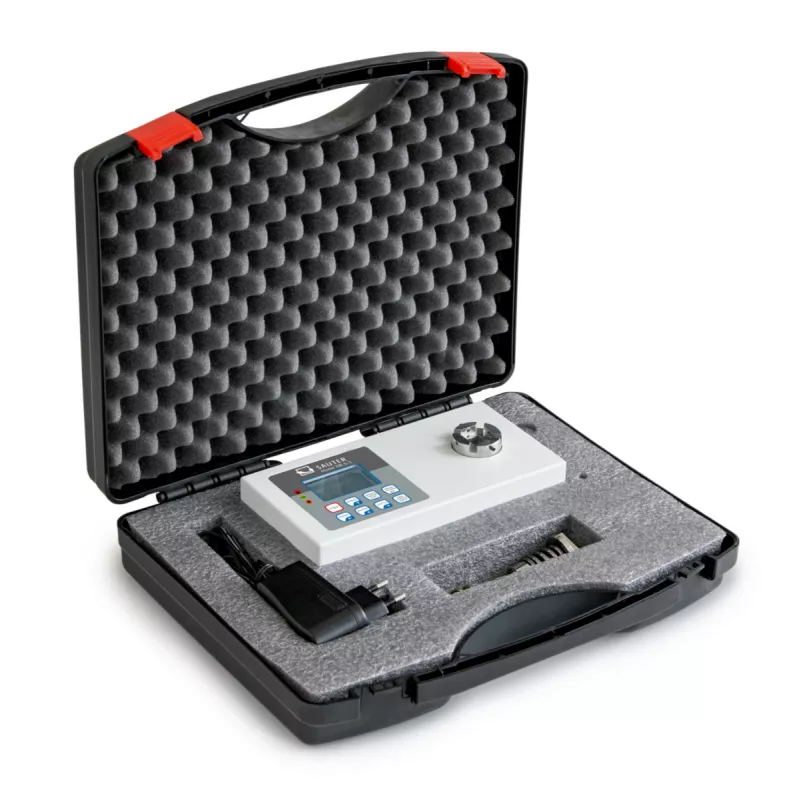

Scope of supply: rotary sensor, sturdy carry case, mounting plate (for models with [Max] ≥ 20 Nm)
Internal data memory saves up to 500 measurements. The content of the memory can be transferred to the PC using optional software
Real time or Peak Hold Mode to observe transcients or capture peaks
Can be used in both directions of rotation
Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed. The process is supported by an acoustic and visual signal
AUTO-OFF function
Illustration may show an application example, decoration not included
