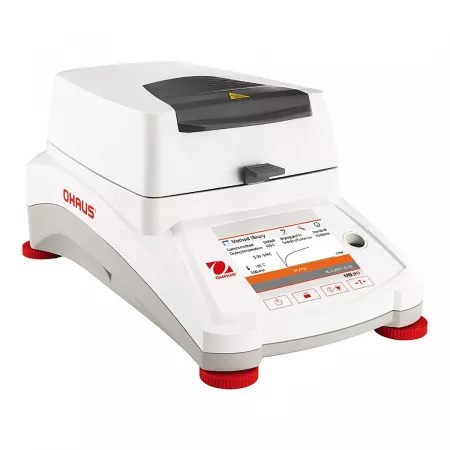

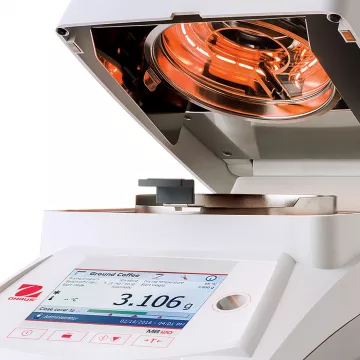

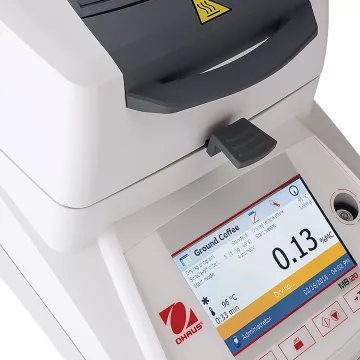

The MB120 delivers functionality and precision that you can rely on, and is easy to operate and clean – you can test more samples in less time! Advanced features such as a temperature guide help to analyze optimum drying temperature, and methods and results storage allows statistical analysis of measurements. Three levels of user management ensure data safety - set up and lock temperature settings and method parameters with administrator access.
- The temperature guide of the MB120 analyzes a sample and determines the optimal drying temperature. It can memorize up to 100 drying methods for easy recall, and more than 1000 complete results for statistical analyzes.
- Precise control of the halogen heating ensures uniform drying of the samples, and reproducible results with a display accuracy of 0.01%. Its four drying profiles and seven shutdown criteria enable custom sample testing.
- The removable cup holder and sample chamber of the MB120 make cleaning easy. The use of the MB120 is intuitive: just follow the instructions on the touch screen.
Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing
4.3" TFT color touchscreen display
Power cord (included)
RS232 with GLP/GMP data output, USB Host and USB Device (included)

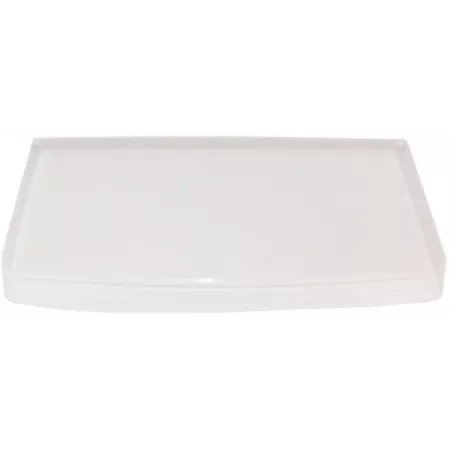

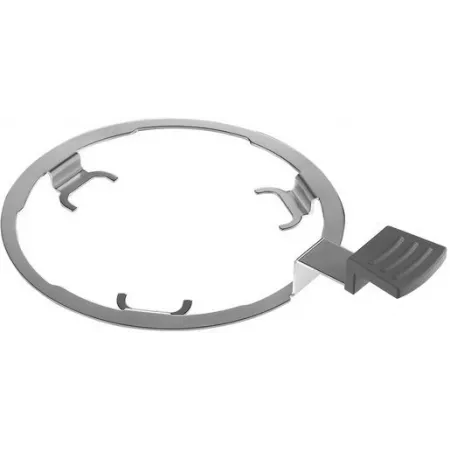

Metal base, ABS top housing, halogen heat source, stainless steel pan support, stainless steel pan handler, in-use cover
Seven shut-off criteria (manual, timed, autofree %/s, autofree mg/s, A30, A60 and A90), four drying profiles (standard, fast, ramp and step), storage up to 100 methods and 1000 test results for all methods, user guide, 40°C to 230°C heating temperature range (1°C increments), 13 operational languages
Capacity: 120 g
Readability: 0.01 %/0.001 g
Repeatability (Std Dev) (g): 0.05 % (3 g sample) 0.015 % (10 g sample)
Moisture Range: 0.01 % to 100 % (0.01 % to 1000 % for regain mode)
Output: RS232, USB host, USB device
Heating Element: Halogen
Temperature Range: 40–230 °C
Power: 120 or 240 VAC 50/60 Hz
Operating Temperature Range: 10–40 °C
Display Type: 109 mm, QVGA, TFT touch screen
Display Results: %moisture, %solids, %regain, time, temperature, weight, method name, drying curve and statistics

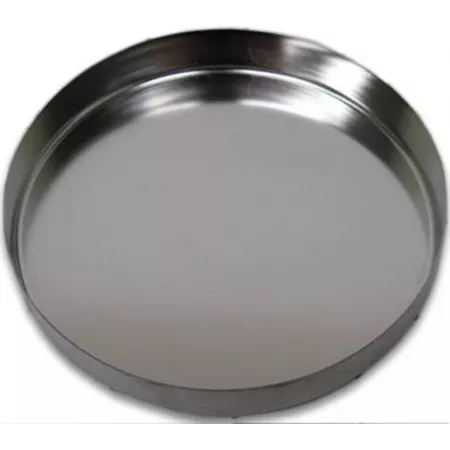

Pan Size: 90 mm
Dimensions (W × H × D): 210 × 180 × 350 mm
Net Weight: 5.23 kg
Shipping Weight: 8.35 kg
Additional Features—MB120
ABS top housing, stainless steel pan support, stainless steel metal pan handler, in-use cover, 7 shut-off criteria (manual, timed, autofree %/s, autofree mg/s, A30, A60 and A90), 4 heating profiles (standard, fast, ramp and step), storage up to 100 methods and 1000 test results for each method, user guide, 40–230 °C heating temperature range (1 °C increments), 13 operational languages (display only, no key in)
Compliance
• Models are CE, UL listed, CSA approved and FCC approved
