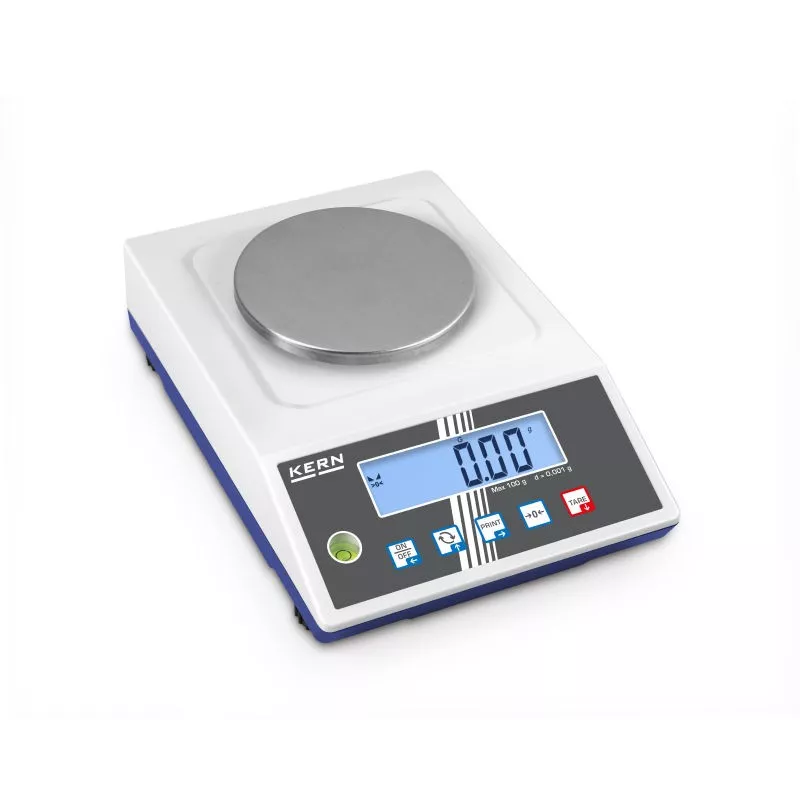

IoT-Line Compact Laboratory Balance PCB

€310.00 Save 15%

€263.50 Tax excluded

€144.50 - €272.00

Condition

New

Reference

PCB 200-3

KERN PCB ► The standard in the laboratory, ideal for a wide range of applications for Industry 4.0

Read the full description

Click here to view product combination list.

Industry Balance LaboratoryScale PrecisionScale PCB KERN Laboratory KernScale Range Compact Applications Ideal

Obtain technical data

Model

Characteristics

Certificate / Verification

Price HT

Stock

Shipping time

Model

Characteristics

Certificate / Verification

PCB 200-3

Characteristics

Weighing range [Max]:

200 g

Readout [d]:

0,001 g

Mininum piece weight at piece counting:

0,02 g

Weighing surface:

Ø 82 mm

Material weighing plate:

Plastique

Rechargeable battery:

Accu optional

Certificate / Verification

DAkkS Calibration Certificate optional:

€263.50 HT €310.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

Certificate / Verification

PCB 300-3

Characteristics

Weighing range [Max]:

360 g

Readout [d]:

0,001 g

Mininum piece weight at piece counting:

0,02 g

Weighing surface:

Ø 82 mm

Material weighing plate:

Plastique

Rechargeable battery:

Accu optional

Certificate / Verification

DAkkS Calibration Certificate optional:

€272.00 HT €320.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

Certificate / Verification

PCB 300-2

Characteristics

Weighing range [Max]:

300 g

Readout [d]:

0,01 g

Mininum piece weight at piece counting:

0,2 g

Weighing surface:

Ø 105 mm

Material weighing plate:

Stainless steel

Rechargeable battery:

Accu optional

Certificate / Verification

DAkkS Calibration Certificate optional:

€212.50 HT €250.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

Certificate / Verification

PCB 1000-2

Characteristics

Weighing range [Max]:

1200 g (1,2kg)

Readout [d]:

0,01 g

Mininum piece weight at piece counting:

0,2 g

Weighing surface:

130 mm x 130 mm

Material weighing plate:

Stainless steel

Rechargeable battery:

Accu optional

Certificate / Verification

DAkkS Calibration Certificate optional:

€246.50 HT €290.00

Price HT

Stock

Shipping time

Action

Available from stock

20 article(s)
Immediate withdrawal

Model

Characteristics

Certificate / Verification

PCB 2000-1

Characteristics

Weighing range [Max]:

2000 g (2kg)

Readout [d]:

0,1 g

Mininum piece weight at piece counting:

2 g

Weighing surface:

130 mm x 130 mm

Material weighing plate:

Stainless steel

Rechargeable battery:

Accu optional

Certificate / Verification

DAkkS Calibration Certificate optional:

€195.50 HT €230.00

Price HT

Stock

Shipping time

Action

Available from stock

2 article(s)
Immediate withdrawal

Model

Characteristics

Certificate / Verification

PCB 6000-1

Characteristics

Weighing range [Max]:

6000 g (6kg)

Readout [d]:

0,1 g

Mininum piece weight at piece counting:

2 g

Weighing surface:

150 mm x 170 mm

Material weighing plate:

Stainless steel

Rechargeable battery:

Accu optional

Certificate / Verification

DAkkS Calibration Certificate optional:

€212.50 HT €250.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

Certificate / Verification

PCB 10000-1

Characteristics

Weighing range [Max]:

10000 g (10kg)

Readout [d]:

0,1 g

Mininum piece weight at piece counting:

2 g

Weighing surface:

150 mm x 170 mm

Material weighing plate:

Stainless steel

Rechargeable battery:

Accu optional

Certificate / Verification

DAkkS Calibration Certificate optional:

€221.00 HT €260.00

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

Certificate / Verification

PCB 6000-0

Characteristics

Weighing range [Max]:

6000 g (6kg)

Readout [d]:

1 g

Mininum piece weight at piece counting:

20 g

Weighing surface:

150 mm x 170 mm

Material weighing plate:

Stainless steel

Rechargeable battery:

Accu optional

Certificate / Verification

DAkkS Calibration Certificate optional:

€144.50 HT €170.00

Price HT

Stock

Shipping time

Action

Available from stock

1 article(s)
Immediate withdrawal

Description

Compatible with school-specific software solutions such as, for example, Vernier® or LabQuest®. Thanks to the KERN School Protocol, as part of technical experiments, weighing data can be transferred to a PC, laptop, etc. for evaluation and display using the USB data interface
Industry 4.0: The integrated KERN Universal Port (KUP) allows the connection of external KUP interface adapters such as RS-232, USB, Bluetooth, WLAN, Analogue, Ethernet etc. The outstanding advantage here is that the KUP interface adapters are simply plugged in, i.e. retrofitting interfaces is conveniently possible without opening the scale housing or complicated installation. The interface adapters enable convenient transmission of weighing data to networks, PCs, smartphones, tablets, laptops, printers etc. In addition, control commands and data inputs can also be sent to the scale via the connected devices. Tip: with the KERN YKUP-13 extension box, up to three KUP interface adapters can be operated in parallel on the scale.
KERN Communication Protocol (KCP): The KCP permits searching and remote control of the balance using external control devices or computers
Standardised, simplified concept of operation
PRE-TARE function for manual subtraction of a known container weight, useful for checking fill-levels
With the recipe function you can weigh the different ingredients of a mixture. As a check, you can also call up the total weight of all the ingredients
Weighing with tolerance range (checkweighing): a visual and audible signal helps with portioning, dispensing or grading
Freely programmable weighing unit, e.g. display direct in special units such as length of thread g/m, paper weight g/m2, or similar
A special Anti-Shock system between the weighing plate and weighing cell reduces vibrations during the weighing process and in this way ensures rapid, reliable weighing results
Protective working cover included with delivery
Individual header data: the free software KERN SHM-01 can be used to print 4 header lines on the printout for printers 911-013, YKN-01, YKB-01N, YKE-01 and YKC-01 (in combination with YKI-02)
