Digital refractometer ORM-AL_ORM-BR - Area of application: Beer/Alcohol

• The handy and robust design allows the easy, efficient and sustainable use in everyday life

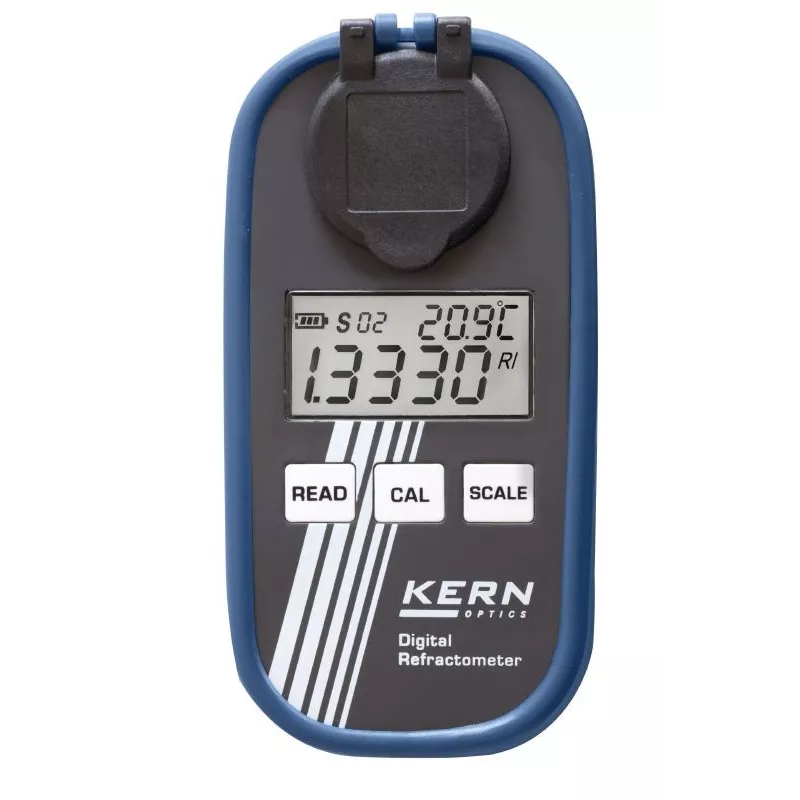

• The large, easy-to-read display with integrated temperature display supports the user to reliably determine the measurement
• The integrated automatic temperature compensation (ATC) means that you can work easily and quickly, as you do not have to manually convert the measurement
• A quick and user-friendly calibration of the refractometer is possible at any time using commercially available distilled water
• The KERN ORM refractometers are accurate and universal maintenance free digital handheld refractometers.
• Other key features are the easy handling and sturdiness
• The refractometers of the KERN ORM series are protected against dust and splash water according to the international protection class IP65. You can rinse the refractometer under running water after use

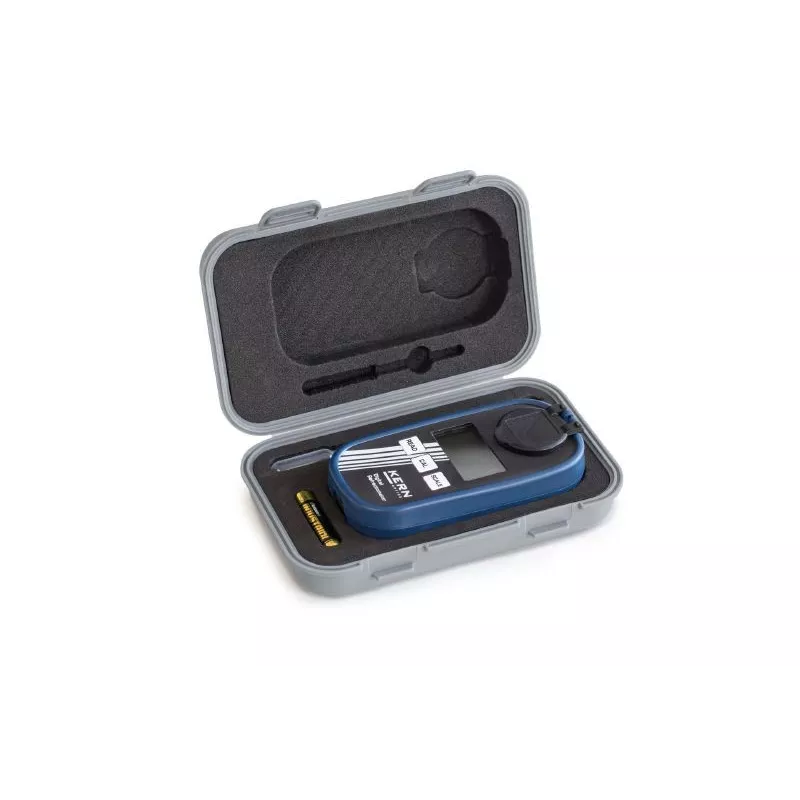

• Included in the scope of supply
  • -
  • - Pipette
  • - 1 × AAA (1.5 V)
  • - User manual

• Measuring temperature: 0 – 40 °C
• Overall dimensions W×D×H 121 × 58 × 25 mm
• Net weight approx. 289 g
• Power supply: 1 × AAA (1.5 V)
• Service life of the batteries: approx. 10,000 measurements
• ATC (Automatic temperature compensation)
• Minimum sample volume: 2 drops

The following models are particularly suitable for determining the sugar content of the original wort of beer in its unfermented state. The value can be read straightaway, without having to be converted, using the SG Wort and Degrees Plato scales. In addition, the percent by volume and percent by mass scales can be used to determine the alcohol content of clear spirits. Alternatively the display can be switched to show Brix or the refractive index.

Main areas of application:

• Beer brewers
• Alcohol production
