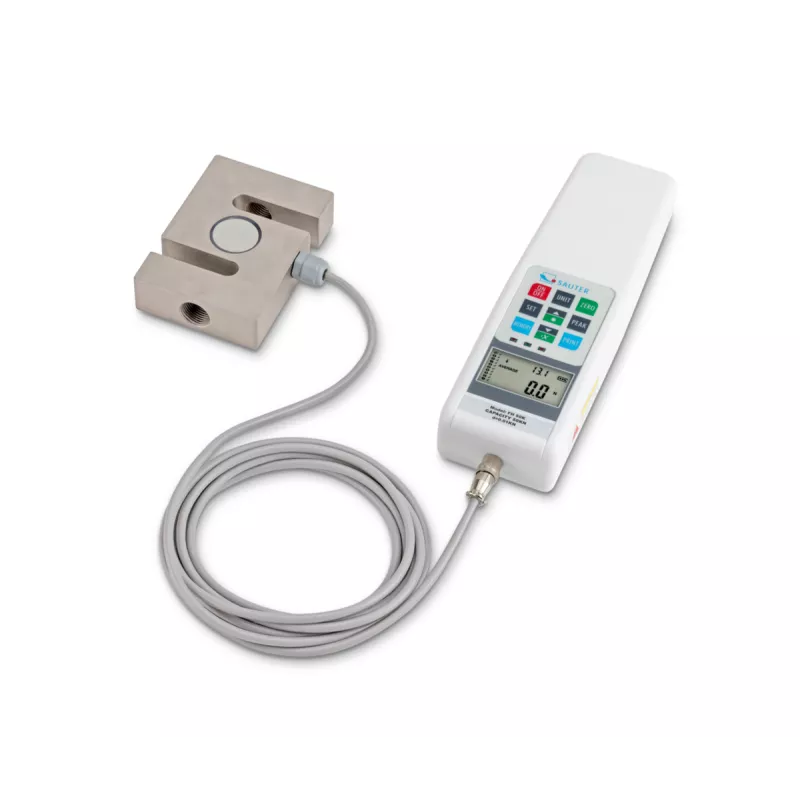

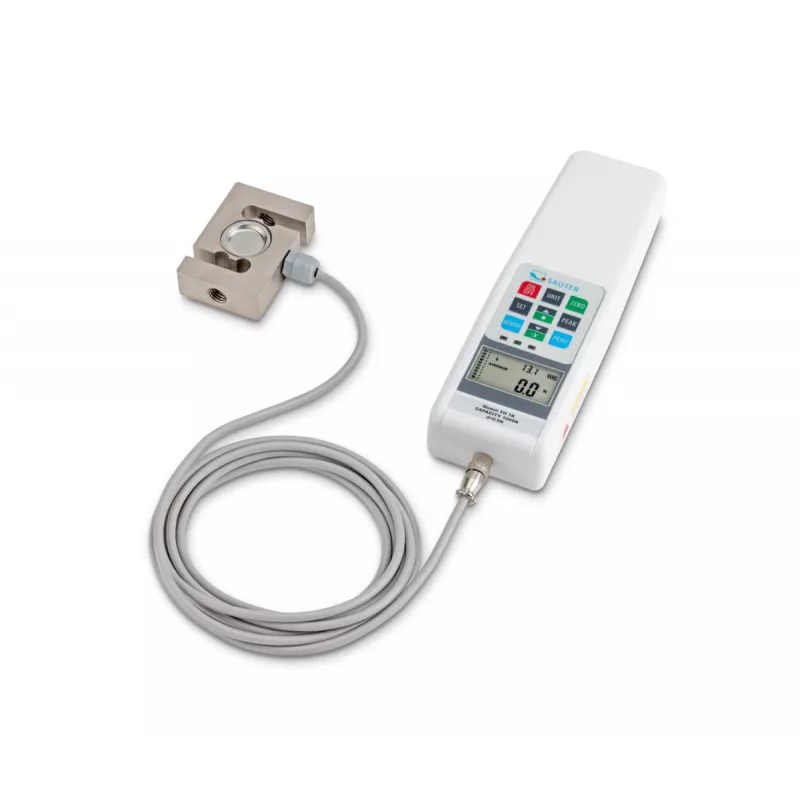

Digital force gauge SAUTER FH-M
€1,000.00 Tax excluded
€1,000.00 - €1,970.00
Model
Characteristics
Price HT
Stock
Shipping time
Model
Characteristics
FH 1K See specifications
Characteristics
Measuring range [Max] N:
1000 N (1 kN)
Readout [d] N:
0.5 N
Option Factory calibration certificate (Tensile):
Option Factory calibration certificate (Pressure):
Option Factory calibration certificate (Tensile/Pressure):
€1,000.00 HT
Price HT
Stock
Shipping time
Action
20
Available from stock
48 - 72h
Model
Characteristics
FH 2K See specifications
Characteristics
Measuring range [Max] N:
2000 N (2 kN)
Readout [d] N:
1 N
Option Factory calibration certificate (Tensile):
Option Factory calibration certificate (Pressure):
Option Factory calibration certificate (Tensile/Pressure):
€1,000.00 HT
Price HT
Stock
Shipping time
Action
16
Available from stock
48 - 72h
Model
Characteristics
FH 5K See specifications
Characteristics
Measuring range [Max] N:
5000 N (5 kN)
Readout [d] N:
1 N
Option Factory calibration certificate (Tensile):
Option Factory calibration certificate (Pressure):
Option Factory calibration certificate (Tensile/Pressure):
€1,270.00 HT
Price HT
Stock
Shipping time
Action
20
Available from stock
48 - 72h
Model
Characteristics
FH 10K See specifications
Characteristics
Measuring range [Max] N:
10000 N (10 kN)
Readout [d] N:
5 N
Option Factory calibration certificate (Tensile):
Option Factory calibration certificate (Pressure):
Option Factory calibration certificate (Tensile/Pressure):
€1,500.00 HT
Price HT
Stock
Shipping time
Action
20
Available from stock
48 - 72h
Model
Characteristics
FH 20K See specifications
Characteristics
Measuring range [Max] N:
20000 N (20 kN)
Readout [d] N:
10 N
Option Factory calibration certificate (Tensile):
Option Factory calibration certificate (Pressure):
Option Factory calibration certificate (Tensile/Pressure):
€1,500.00 HT
Price HT
Stock
Shipping time
Action
19
Available from stock
48 - 72h
Model
Characteristics
FH 50K See specifications
Characteristics
Measuring range [Max] N:
50000 N (50 kN)
Readout [d] N:
10 N
Option Factory calibration certificate (Tensile):
Option Factory calibration certificate (Pressure):
Option Factory calibration certificate (Tensile/Pressure):
€1,750.00 HT
Price HT
Stock
Shipping time
Action
10
Available from stock
48 - 72h
Model
Characteristics
FH 100K See specifications
Characteristics
Measuring range [Max] N:
100000 N (100 kN)
Readout [d] N:
50 N
Option Factory calibration certificate (Tensile):
Option Factory calibration certificate (Pressure):
Option Factory calibration certificate (Tensile/Pressure):
€1,970.00 HT
Price HT
Stock
Shipping time
Action
20
Available from stock
48 - 72h
Description
- Turnable display with backlight
- cable length: approx. 3 m
- Data interface RS-232 standard

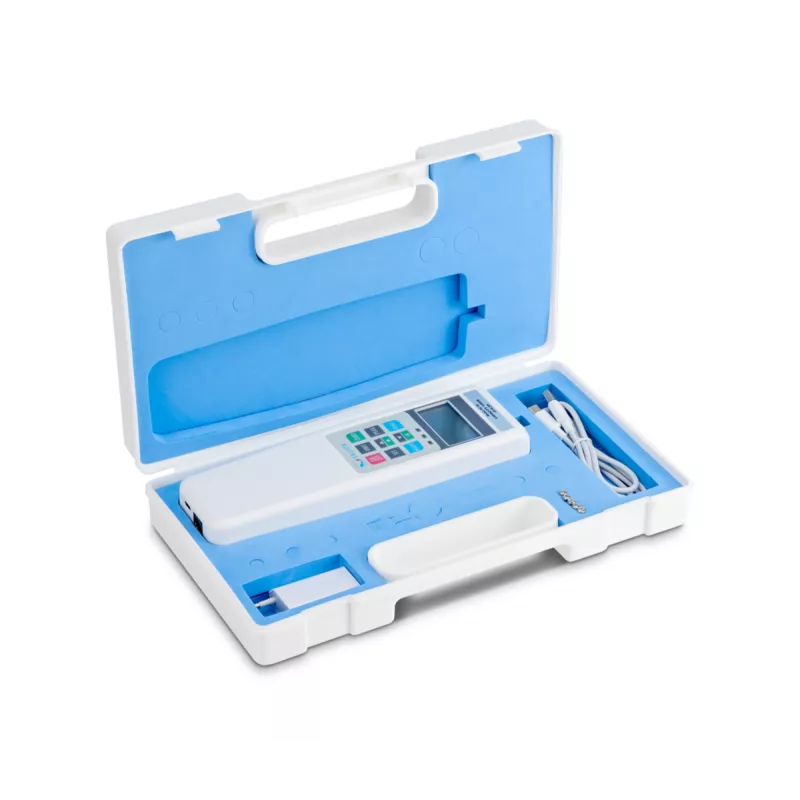

- Delivered in a hard carrying case
- Selectable measuring units: N, lb, kg, kN, t
- Real time or Peak Hold Mode to observe transcients or capture peaks
- Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed, in pull and push direction. The process is supported by an acoustic and visual signal
- Auto-Power-Off
- Internal memory for up to 10 measurements
- Mini Statistics Kit: calculates the average result from up to ten stored single results, min., max., n
-
Tension loops and pressure plates are included with delivery
Brochure SAUTER FH-M (FR)
Download (253.53KB)Mode d'emploi SAUTER FH-M (FR)
Download (684.22KB)Brochure SAUTER FH-M (EN)
Download (244.5KB)Usage manual SAUTER FH-M (EN)
Download (676.19KB)Einzelprospekt SAUTER FH-M (GE)
Download (253.17KB)Betriebsan. SAUTER FH-M (GE)
Download (681.71KB)Folleto SAUTER FH-M (ES)
Download (247.39KB)Instrucciones SAUTER FH-M (ES)
Download (683.2KB)Specific references
- EAN13
- 4045761140462
