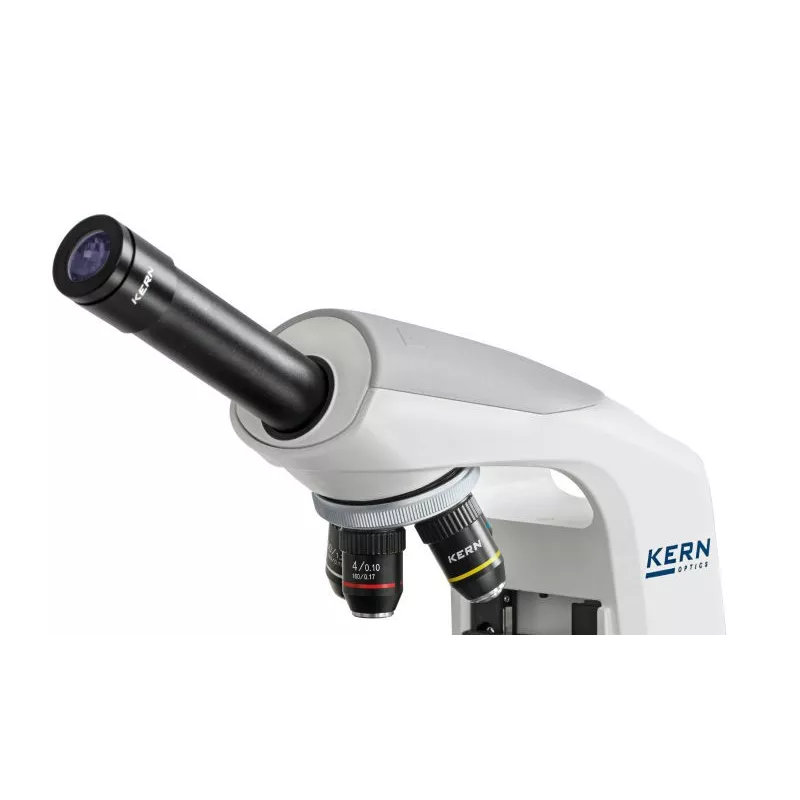

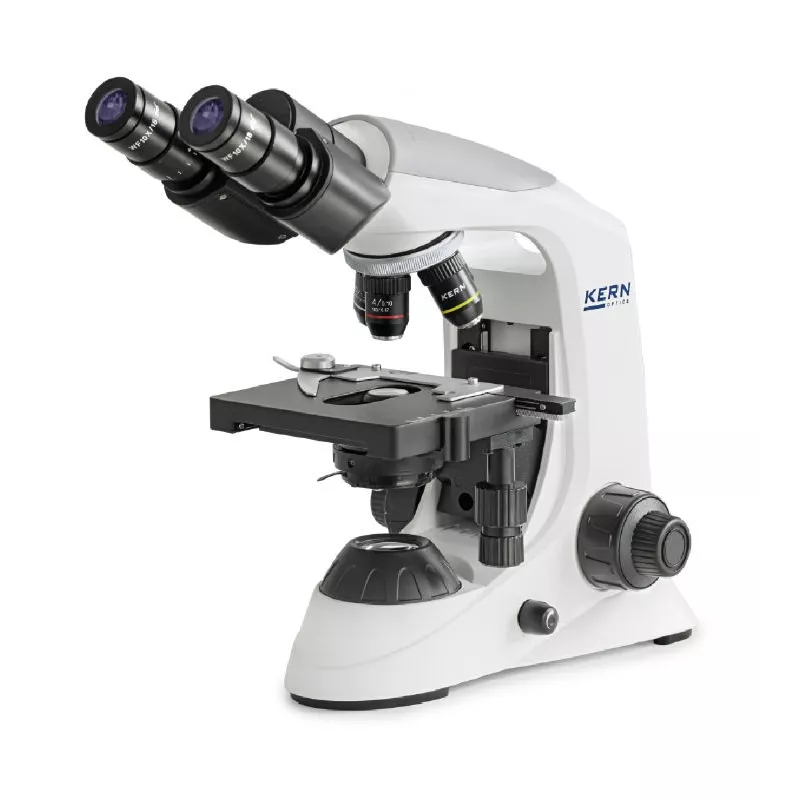

Transmitted light microscope OBE-12 • 13

• The brand new OBE-12/13 range stands out through its exclusive, dynamic device, which is second to none in terms of sturdy construction and ergonomics. The clever storage compartment on the back will enables quick practical storage for your power cable. Thanks to the USB connection technology, it is also possible to supply power using an external powerbank
• The impressive, infinitely dimmable 3 W LED guarantees bright illumination of your sample

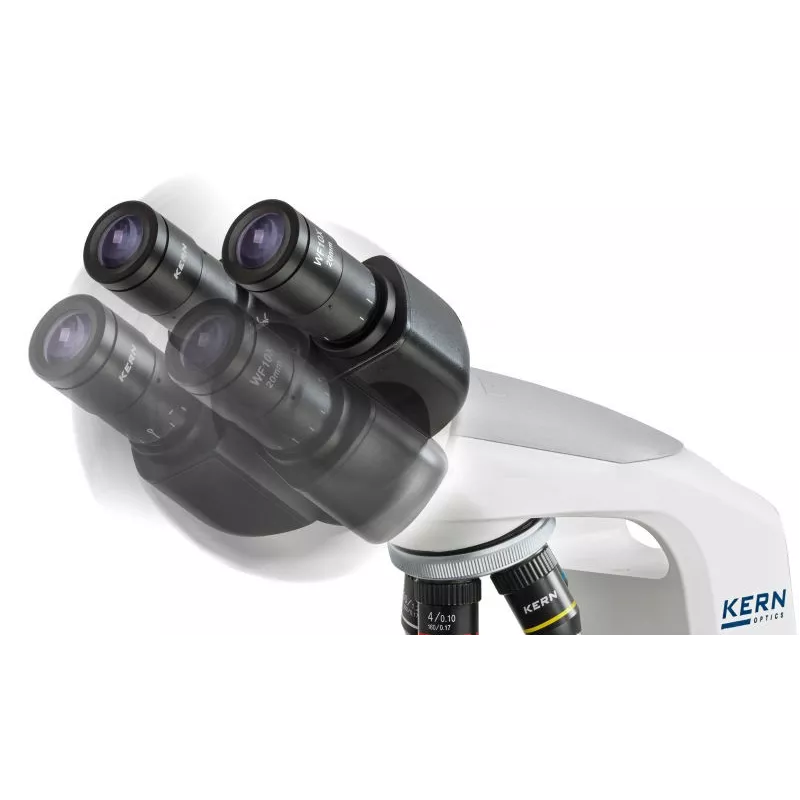

• A further highlight is the butterfly lens barrel which is integrated as standard and which enables you to achieve the ideal viewing angle. The height-adjustable and thereby focusable 1.25 Abbe condenser with aperture diaphragm is a further quality feature of the OBE range and guarantees the very best concentration of light
• Height adjustment of the fully-equipped mechnical stage is carried out using a coarse and fine focusing knob on both sides. The ergonomically designed coaxial drive enables you to work with the samples and move them rapidly
• A large selection of different eyepieces and objectives is also available
• A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery

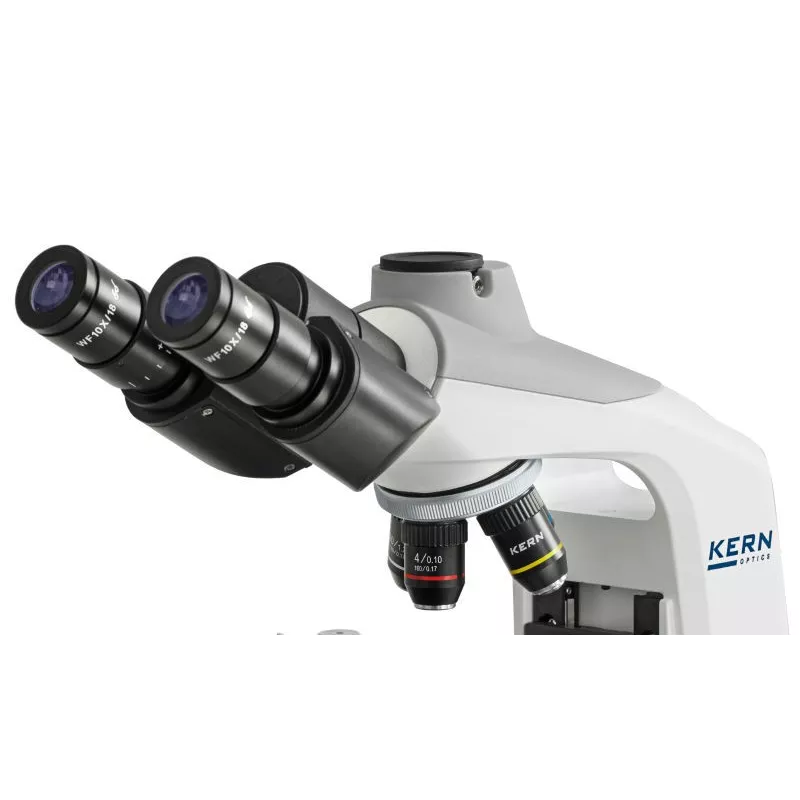

A C-mount adapter is required to connect a camera to the trinocular version

Scope of application

• Training, haematology, sediment investigation, doctor's surgeries

Applications/Samples

• Translucent, thin, high-contrast, less complex samples (e.g. plant tissue, coloured cells/parasites)

Technical data

• Finite optical system (DIN)
• 4-fold lens revolving unit
• Butterfly 30°
• Dioptre compensation (one-sided) (for binocular and trinocular models)
• Overall dimensions W×D×H 360×150×320 mm
• Net weight approx. 4,488 kg
