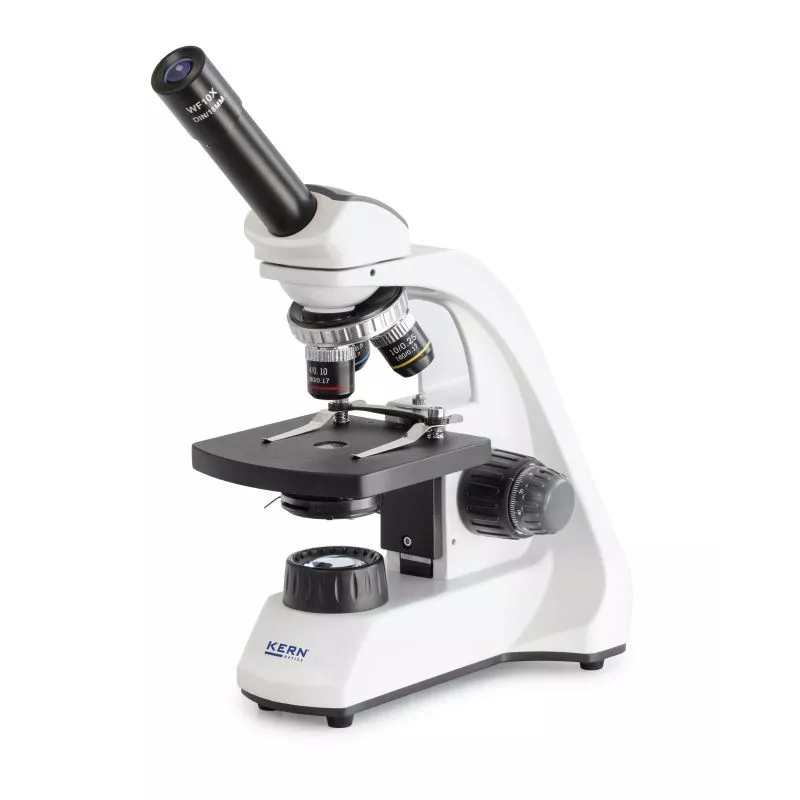

Transmitted light microscope OBT-1

• The OBT-1 range is a high-quality school microscope, which will impress you with its intuitive control elements, sturdy construction and modern design
• The continuous dimmable 1W LED guarantees optimum illumination of the samples and also ensures long service life. Mobile use is also no problem through optional battery operation
• The simple 0.65 condenser lens with rotating aperture diaphragm on the OBT 101 ensures the very best concentration of light and illumination of the sample. The OBT 102 - OBT 106 models have a 1.25 Abbe condenser which is height-adjustable and can therefore be focussed and has an aperture diaphragm, which ensures the very best concentration of light
• To focus the object, all models have a coarse and fine focusing knob on both sides. The mechanical angle table enables you to work with the samples and move them rapidly (with model OBT 103 - OBT 106)
• A large selection of different eyepieces and objectives is also available
• A dust cover as well as user instructions are included with the delivery

Scope of application

• Primary school, secondary school, training, hobby use

Applications/Samples

• Translucent, thin, high-contrast, less complex samples (e.g. plant tissue, coloured cells/parasites)

Applications/Samples

• Finite optical system (DIN)
• OBT 101: 3-fold lens revolving unit
• OBT 102 - OBT 106: 4-fold lens revolving unit
• Lens barrel 45° tilt/360° rotatable

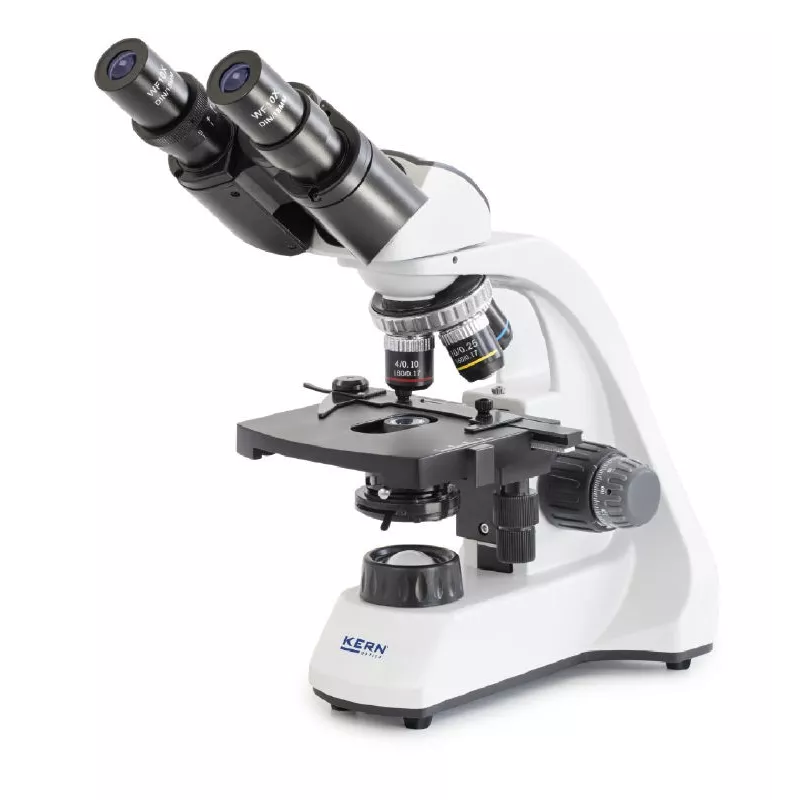

• Dioptre compensation one-sided (for binocular models)
• Overall dimensions W×D×H 195×147×325 mm
• Net weight approx. 2,2 kg
