Digital force gauge SAUTER FH-EXT

€1,010.00 Tax excluded

€1,000.00 - €1,010.00

Condition

New

Reference

FH 50 EXT

SAUTER FH-EXT ► Force-measurement device with external, high-resolution measuring cell for small loads

Description complète et documents

Click here to view product combination list.

Obtain technical data

ForceMeasurement 20N 50N 100N ForceGauge 200N 500N DigitalForceGauge FH Force FH-EXT Gauge

Model

Characteristics

Price HT

Stock

Shipping time

Model

Characteristics

FH 50 EXT

Characteristics

Measuring range [Max] N:

50 N

Readout [d] N:

0.01 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€1,010.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FH 100 EXT

Characteristics

Measuring range [Max] N:

100 N

Readout [d] N:

0.05 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€1,000.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FH 200 EXT

Characteristics

Measuring range [Max] N:

200 N

Readout [d] N:

0.1 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€1,000.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Model

Characteristics

FH 500 EXT

Characteristics

Measuring range [Max] N:

500 N

Readout [d] N:

0.1 N

Option Factory calibration certificate (Tensile):

Option Factory calibration certificate (Pressure):

Option Factory calibration certificate (Tensile/Pressure):

€1,000.00 HT

Price HT

Stock

Shipping time

Action

Available from stock

48 - 72h

Description

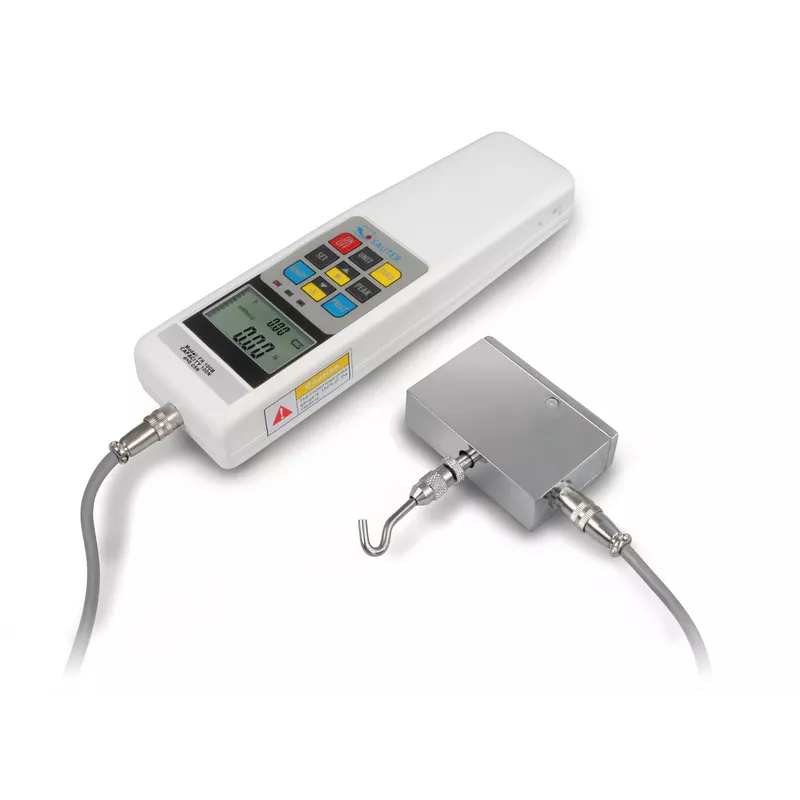

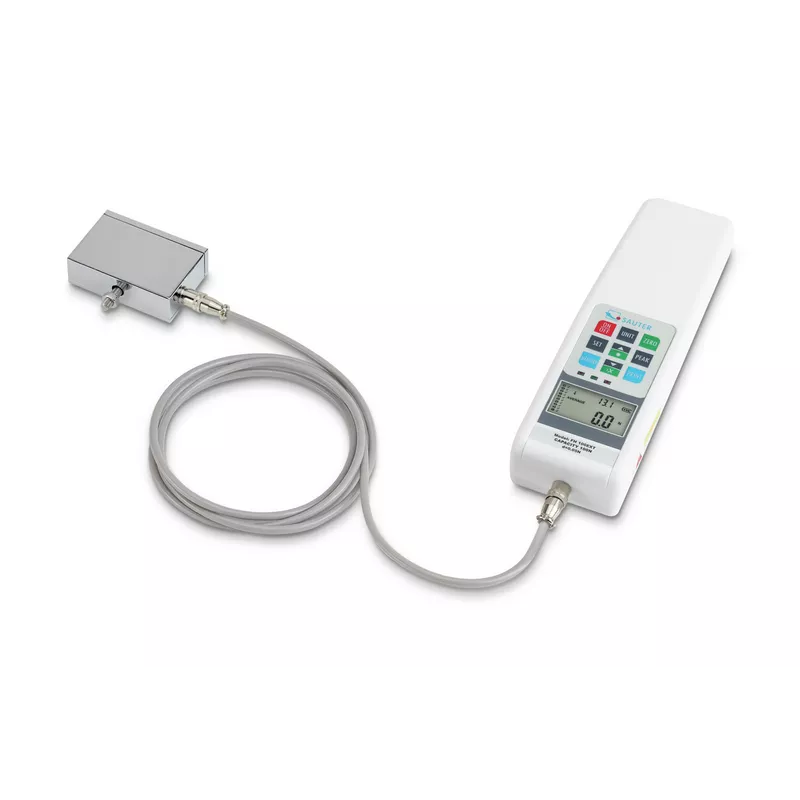

Force-measuring device combination consisting of an external measurement sensor and a high-resolution display unit
Ideal for force measurement of very slight forces or loads in machines and plants
Real time or Peak Hold Mode to observe transcients or capture peaks
Push & Pull function to capture tensile and compressive forces
Mini Statistics Kit: calculates the average result from up to ten stored single results, min., max., n
Function to set limits: Input of an upper/lower limit value. A visual and acoustic signal supports the measuring operation
Rechargeable battery pack internal, battery charger included
Depending on the display unit, only one measuring cell can be connected
Suitable for all SAUTER test stands (When ordering a test stand please state)

Technical data

External sensor: Dimensions LxWxH 76×65×22 mm, net weight approx. 0,3 kg (without sensor)
Cable length for display unit approx. 2 m
Tolerance 1 % of [Max]
Selectable measuring units: N, kg, lb
Overload protection: 150 % of [Max]
